25112 BK199

Active

ALPHA WIRE

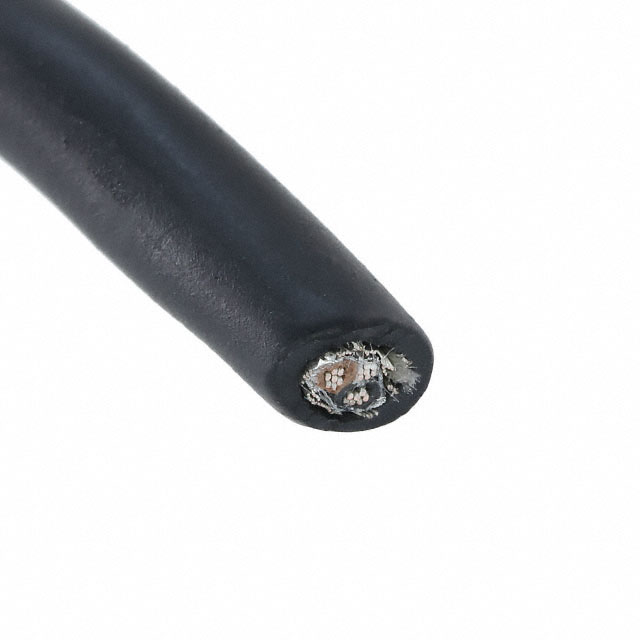

CABLE 2COND 24AWG BLK SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 24AWG BLK SHLD 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25112 BK199	25112 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.67 mm	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in	0.184 in
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Slate, Black
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Number of Conductors	2	2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %	70 - 100 %
Shield Material	Copper, Tinned, Suprashield®	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid	Foil, Braid
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 2COND 24AWG SHLD 1000'

Part	Jacket (Insulation) Material	Shield Material	Length	Length	Conductor Material	Voltage	Ratings	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Shield Type	Features	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 25112 SL199	Polyurethane (PU)	Copper, Tinned, Suprashield®	1000 ft	304.8 m	Copper, Tinned	300 V	ISO 10993, UL Style 20668	Slate	2	32 AWG	7	Poly-Vinyl Chloride (PVC)	Braid, Foil	Biological Compatibility, Drain Wire, Rip Cord	24 AWG	-30 ░C	90 °C	Multi-Conductor	70 %, 100 %	4.67 mm	0.184 in
ALPHA WIRE 25112 BK199	Polyurethane (PU)	Copper, Tinned, Suprashield®	1000 ft	304.8 m	Copper, Tinned	300 V	ISO 10993, UL Style 20668	Black	2	32 AWG	7	Poly-Vinyl Chloride (PVC)	Braid, Foil	Biological Compatibility, Drain Wire, Rip Cord	24 AWG	-30 ░C	90 °C	Multi-Conductor	70 %, 100 %	4.67 mm	0.184 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.59

General part information

2 Conductor Multi-Conductor Cable Black 24 AWG Foil, Braid 1000.0' (304.8m)
