OVTL09LGAW
ObsoleteTT Electronics/BI

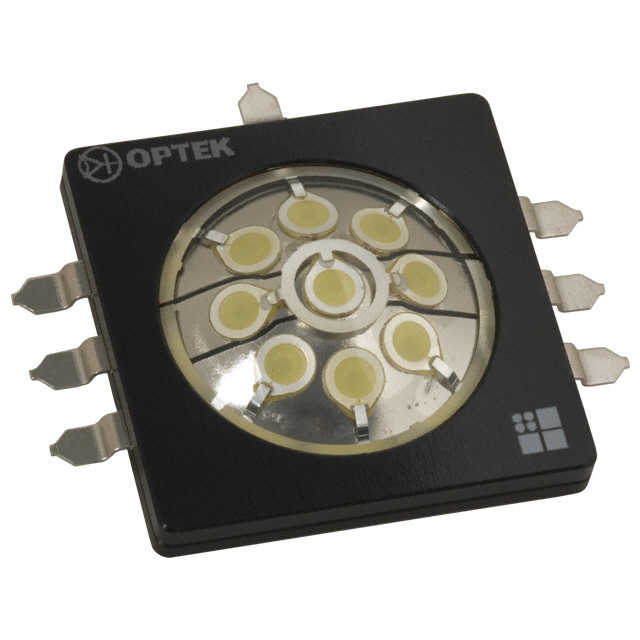

LED LEDNIUM WHITE SMD
OVTL09LGAW
ObsoleteTT Electronics/BI
LED LEDNIUM WHITE SMD
Description
General part information
OVTL09LGAW
LED Lighting Lednium White 10.2V 1.05A 120° 8-SMD (7 Leads), Gull Wing
Technical Specifications
Parameters and characteristics for this part
| Specification | OVTL09LGAW |
|---|---|
| Color | White |
| Current - Max | 3 A |
| Current - Test | 1.05 A |
| Flux | 250 lm |
| Height - Seated (Max) | 0.341 in |
| Lumens/Watt | 23 lm/W |
| Mounting Type | Surface Mount |
| Package Leads | 7 Leads |
| Package Name | SMD, 8-SMD |
| Size / Dimension Length | 1.148 in |
| Size / Dimension Width | 0.846 in |
| Thermal Resistance of Package | 5 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 10.2 V |
