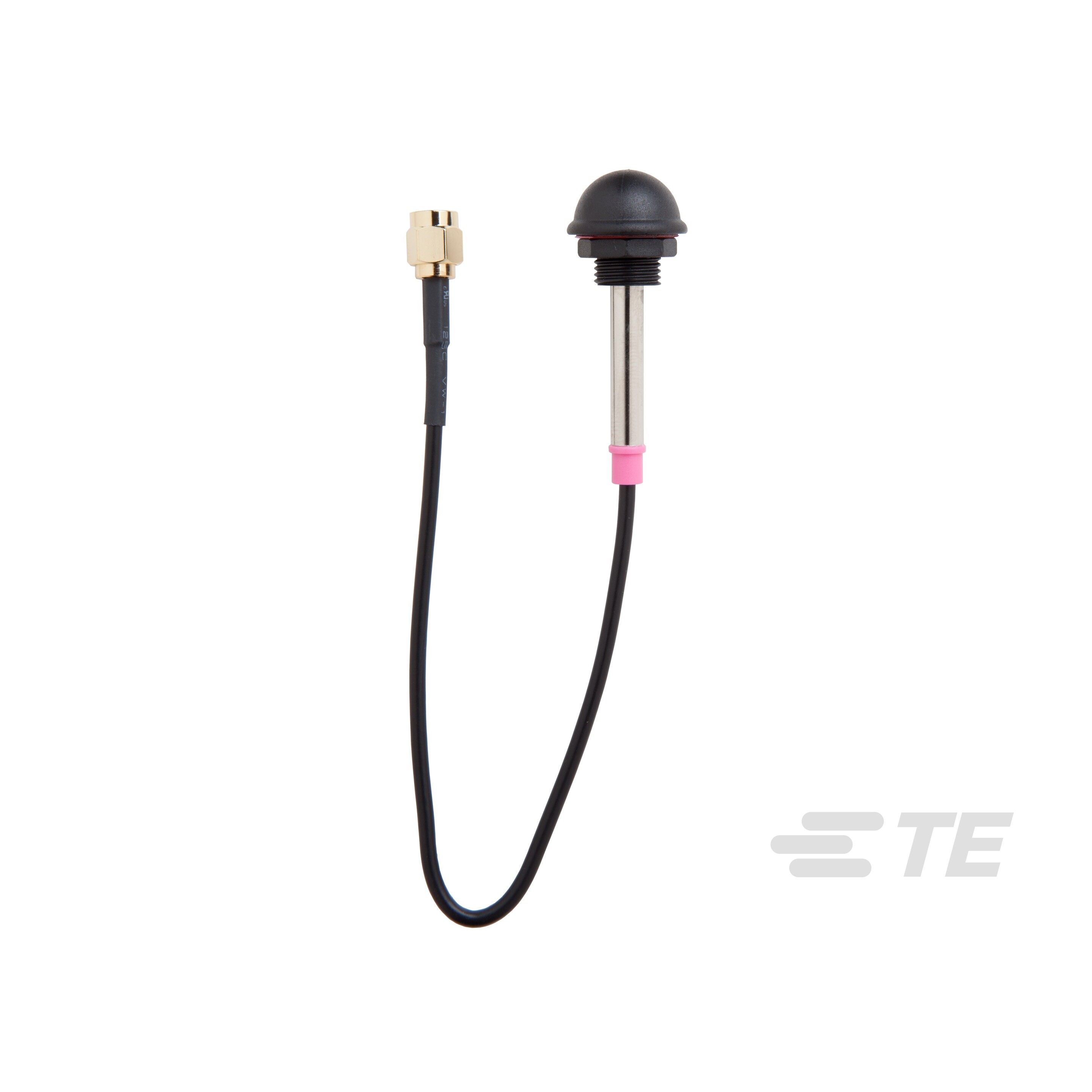

ANT-2.4-WRT-SMA-150
ActiveTE Connectivity AMP Connectors
ANTENNA DOME 2.4GHZ RG174 150 SMA
ANT-2.4-WRT-SMA-150
ActiveTE Connectivity AMP Connectors
ANTENNA DOME 2.4GHZ RG174 150 SMA
Description
General part information
ANT-2.4-WRT-SMA-150
Dome/Puck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2.4-WRT-SMA-150 |
|---|---|
| Antenna Type | Dome |
| Applications | WLAN, Wi-Fi, Zigbee™, Bluetooth, ISM |
| Features | Cable, 150mm |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 9.1 dBi |
| Height (Max) | 0.394 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination Type | SMA Male |
| VSWR | 1.5 |
