LCCA30568-FT10
ActivePasternack
COAX CBL SMA TO TNC 10'
LCCA30568-FT10
ActivePasternack
COAX CBL SMA TO TNC 10'
Description
General part information
LCCA30568-FT10

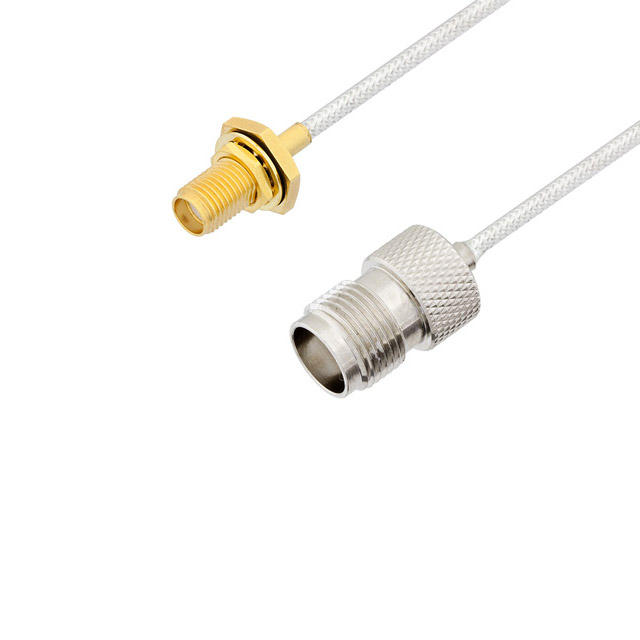

Cable Assembly Coaxial SMA to TNC LC085TB 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30568-FT10 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 120 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
