87982-6

Active

TE Connectivity AMP Connectors

CONN RCPT 6POS 0.156 GOLD PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 6POS 0.156 GOLD PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2268	$ 5.67

General part information

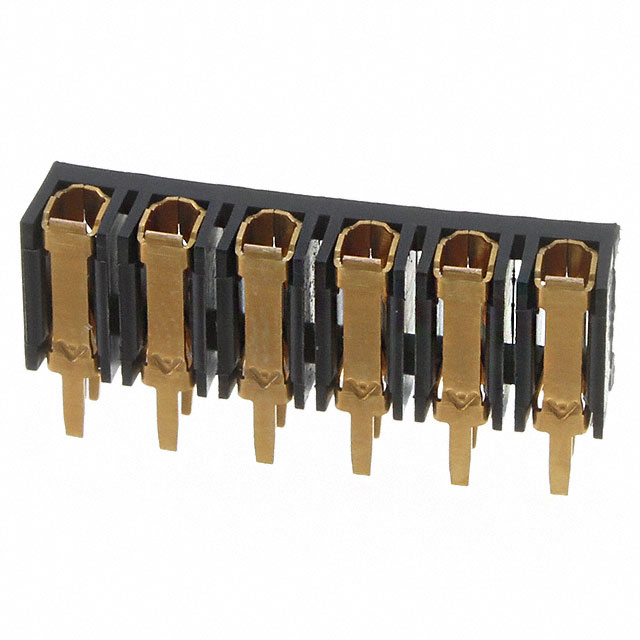

6 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	87982-6	87982 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.3 in	0.3 in
Insulation Height [z]	7.62 mm	7.62 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Through Hole	Through Hole
Number of Positions	6	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

CONN RCPT 6POS 0.156 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Style	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish Thickness - Post	Contact Finish - Post	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Insulation Color
TE Connectivity AMP Connectors 87982-6	Square	Thermoplastic	Female Socket	0.156 in	3.96 mm	Board to Board, Cable	Gold	2.84 mm	0.112 in	UL94 V-2	6	0.3 in	7.62 mm	1	Through Hole	-65 ░C	105 ░C	Push-Pull	Flash	Gold	Solder	Phosphor Bronze	30 Áin	0.76 Ám	All	Receptacle	Black
TE Connectivity AMP Connectors 87982-4	Square	Thermoplastic	Female Socket	0.156 in	3.96 mm	Board to Board, Cable	Gold	2.84 mm	0.112 in	UL94 V-2	4	0.3 in	7.62 mm	1	Through Hole	-65 ░C	105 ░C	Push-Pull	Flash	Gold	Solder	Phosphor Bronze	30 Áin	0.76 Ám	All	Receptacle	Black
TE Connectivity AMP Connectors 87982-2	Square	Thermoplastic	Female Socket	0.156 in	3.96 mm	Board to Board, Cable	Gold	2.84 mm	0.112 in	UL94 V-2	2	0.3 in	7.62 mm	1	Through Hole	-65 ░C	105 ░C	Push-Pull	Flash	Gold	Solder	Phosphor Bronze	30 Áin	0.76 Ám	All	Receptacle	Black
