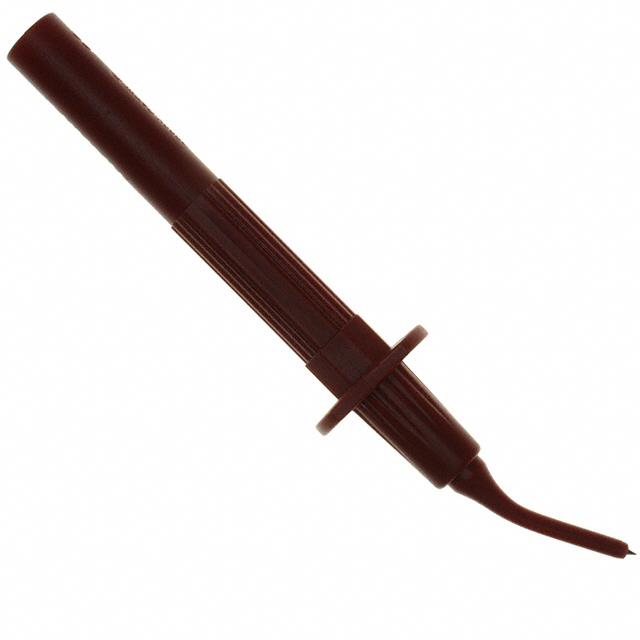

A036R
ActiveTPI (Test Products Int)
FUSED PROD RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A036R
ActiveTPI (Test Products Int)
FUSED PROD RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A036R | A036 Series |
|---|---|---|
| Color | Red | Black, Red |
| Connection Type | Female Socket (Jack), Banana | Female Socket (Jack), Banana |
| Current Rating (Amps) | 30 mA | 30 mA |
| Includes | Fuse Holder | Fuse Holder |
| Length - Overall [x] | 137 mm | 137 mm |
| Length - Overall [x] | 5.39 in | 5.39 in |
| Length - Tip [x] | 0.08 in | 0.08 in |
| Length - Tip [x] | 2 mm | 2 mm |
| Material - Body | Plastic | Plastic |
| Material - Tip | Brass, Nickel Plated | Brass, Nickel Plated |
| Quantity | 1 Box | 1 Box |
| Ratings | CAT III | CAT III |
| Ratings | 1000 V | 1000 V |
| Tip Type | Fused Probe, Standard Tip | Fused Probe, Standard Tip |
A036 Series
FUSED PROD BLACK
| Part | Quantity | Connection Type | Material - Body | Ratings | Ratings | Tip Type | Length - Tip [x] | Length - Tip [x] | Current Rating (Amps) | Includes | Color | Length - Overall [x] | Length - Overall [x] | Material - Tip |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TPI (Test Products Int) A036B | 1 Box | Banana, Female Socket (Jack) | Plastic | CAT III | 1000 V | Fused Probe, Standard Tip | 0.08 in | 2 mm | 30 mA | Fuse Holder | Black | 137 mm | 5.39 in | Brass, Nickel Plated |
TPI (Test Products Int) A036R | 1 Box | Banana, Female Socket (Jack) | Plastic | CAT III | 1000 V | Fused Probe, Standard Tip | 0.08 in | 2 mm | 30 mA | Fuse Holder | Red | 137 mm | 5.39 in | Brass, Nickel Plated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 11.79 | |
Description
General part information
A036 Series
30 mA Standard Tip, Fused Probe Red
