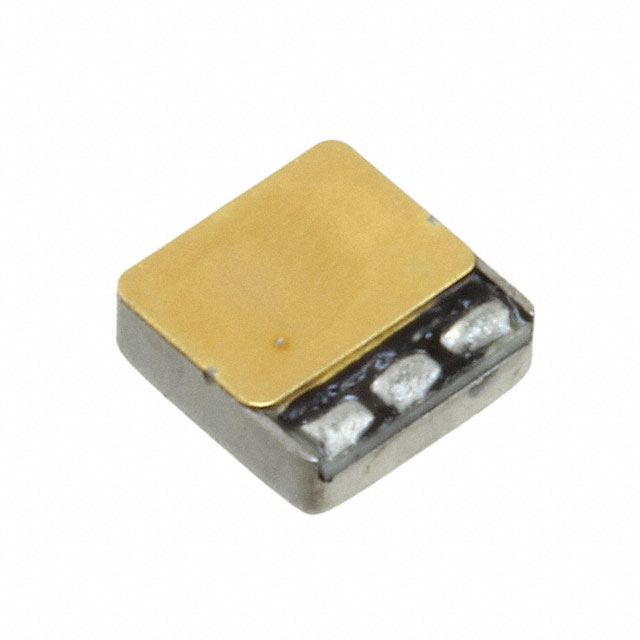

TO38-31018-B20
ActiveKnowles Syfer
MIC COND ANALOG OMNI -64.5DB
TO38-31018-B20
ActiveKnowles Syfer
MIC COND ANALOG OMNI -64.5DB
Description
General part information
TO38-31018-B20
80 Hz ~ 10 kHz Analog Microphone Electret Condenser 0.9 V ~ 1.6 V Omnidirectional (-64.5dB ±3dB @ 74dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | TO38-31018-B20 |
|---|---|
| Current - Supply | 29 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 80 Hz |
| Height (Max) | 0.053 in |
| Impedance | 4.4 kOhms |
| Output Type | Analog |
| Port Location | Side |
| Sensitivity (Nominal) | -64.5 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Square |
| Size / Dimension Length | 0.141 in |
| Size / Dimension Width | 0.141 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage Range (Max) | 1.6 V |
| Voltage Range (Min) | 0.9 V |
