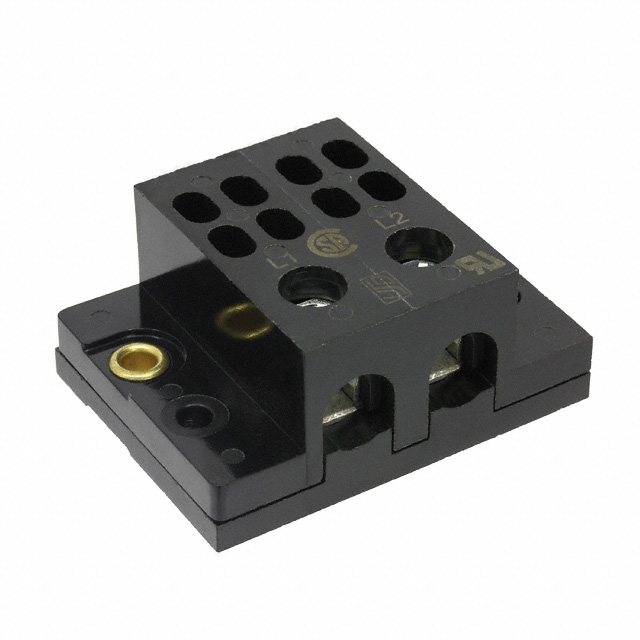

11725-2
ActiveEaton - Electronics Division
QUICK CONNECT POWER BLOCK 2P MAGNUM QUICK CONNECT POWER DISTRIBUTION BLOCK ROHS COMPLIANT: YES
11725-2
ActiveEaton - Electronics Division
QUICK CONNECT POWER BLOCK 2P MAGNUM QUICK CONNECT POWER DISTRIBUTION BLOCK ROHS COMPLIANT: YES
Description
General part information
11725-2
2 Pole Power Distribution Block 70 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 11725-2 |
|---|---|
| Current Rating | 70 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Material | AL, CU |
| Line Side Wire Size (Max) | 8 AWG, 14 AWG |
| Line Side Wire Size (Min) | 2 AWG |
| Load Side Connection Type | Quick Connects |
| Load Side Connection Type Size | 0.25 in |
| Load Side Connections Per Pole | 4 |
| Number of Poles | 2 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
