ANS-3801-B
ActiveBUD INDUSTRIES
BOX ALUM BLACK 3.79"L X 3.79"W
ANS-3801-B
ActiveBUD INDUSTRIES
BOX ALUM BLACK 3.79"L X 3.79"W
Description
General part information
ANS-3801-B

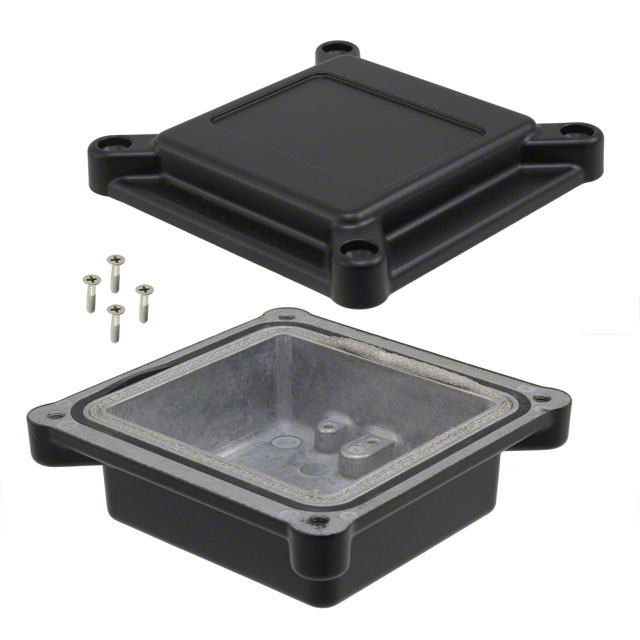

Box Metal, Aluminum Black Cover Included 3.787" L x 3.787" W (96.19mm x 96.19mm) X 1.772" (45.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | ANS-3801-B |
|---|---|
| Area (L x W) | 14.2 in² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included |
| Features | EMI Shielded, PCB Supports |
| Height | 1.772 in |
| Material | Metal, Aluminum |
| Ratings | 1, 4X, 12, 4, NEMA, 13, 2, IP67 |
| Size / Dimension Length | 3.787 in |
| Size / Dimension Width | 3.787 in |
| Thickness | 0.098 in |
| Weight | 0.65 lb |
