Description
General part information

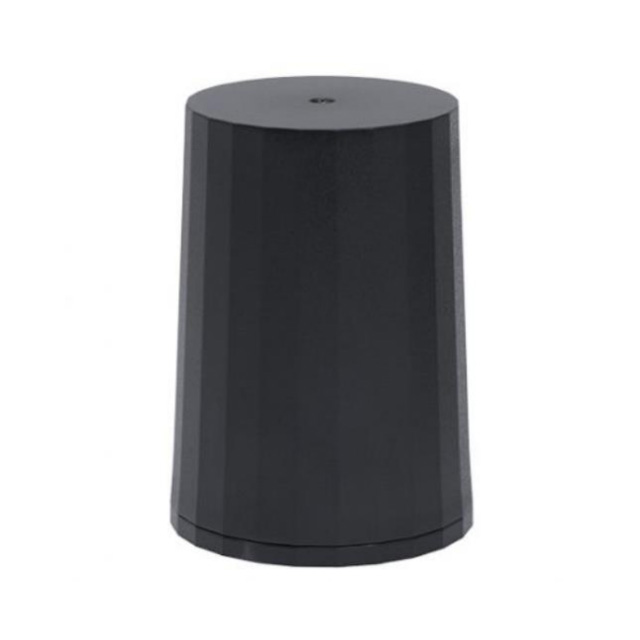

33-HC979XF-28
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS Dome SMA Male Screw Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-HC979XF-28 |
|---|---|
| Antenna Type | Dome |
| Applications | SBAS, QZSS, Galileo, IRNSS, GPS, GNSS, LTE, NavIC, GLONASS, BEIDOU |
| Features | LNA, Filter |
| Frequency (Band) | 1.582 GHz |
| Frequency (Center) | 1.232 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.559 GHz |
| Frequency Range (Band 1) Minimum | 1.164 GHz |
| Frequency Range (Band 2) Maximum | 1.606 GHz |
| Frequency Range (Band 2) Minimum | 1.559 GHz |
| Gain | 28 dBi |
| Height (Max) | 2.457 in |
| Ingress Protection | IP69K |
| Mounting Type | Screw Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation, Cellular |
| Termination Type | SMA Male |
| VSWR | 2 |
