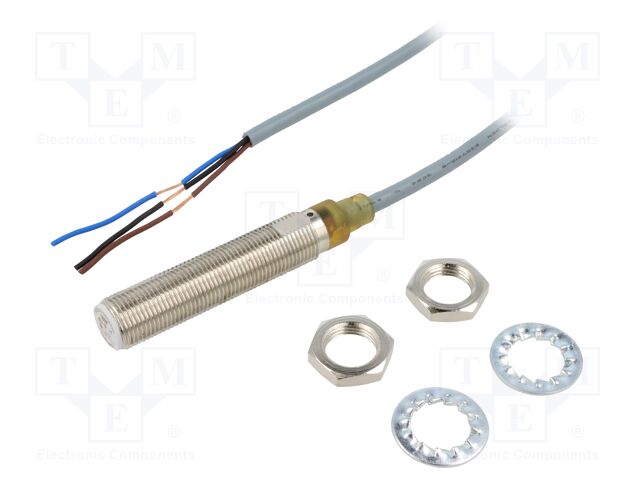

ICB12L50F06PC
ActiveCarlo Gavazzi Inc.
SENSOR: INDUCTIVE; OUT: PNP / NC; 0÷6MM; 10÷36VDC; M12; 2M; IP67
ICB12L50F06PC
ActiveCarlo Gavazzi Inc.
SENSOR: INDUCTIVE; OUT: PNP / NC; 0÷6MM; 10÷36VDC; M12; 2M; IP67
Description
General part information
ICB12L50F06PC
SENSOR: INDUCTIVE; OUT: PNP / NC; 0÷6MM; 10÷36VDC; M12; 2M; IP67
Technical Specifications
Parameters and characteristics for this part
| Specification | ICB12L50F06PC |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, PNP-NC |
| Package / Case | Threaded - M12, Cylinder |
| Response Frequency | 2 kHz |
| Sensing Distance | 0.236 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
