F-157XP
ActiveTriad Magnetics

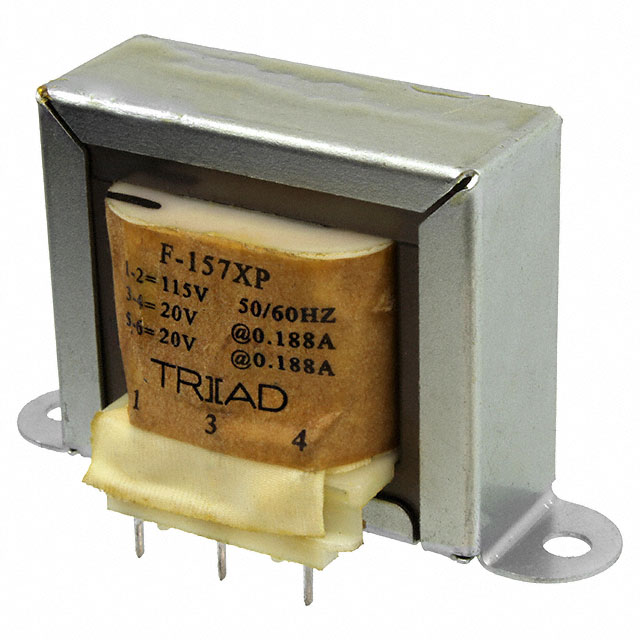

POWER TRANSFORMER 1500VRMS 7.5VA 6 TERMINAL PIN FLANGE MOUNT/THROUGH HOLE
F-157XP
ActiveTriad Magnetics
POWER TRANSFORMER 1500VRMS 7.5VA 6 TERMINAL PIN FLANGE MOUNT/THROUGH HOLE
Description
General part information
F-157XP
POWER TRANSFORMER 1500VRMS 7.5VA 6 TERMINAL PIN FLANGE MOUNT/THROUGH HOLE
Technical Specifications
Parameters and characteristics for this part
| Specification | F-157XP |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 376 mA |
| Current - Output (Max) Series | 188 mA |
| Height - Seated (Max) | 41.28 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 7.5 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 71.42 mm |
| Size / Dimension Width | 37.29 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) (Parallel) | 20 V |
| Voltage - Secondary (Full Load) (Series) | 40 V |
| Weight | 0.657 lb |
