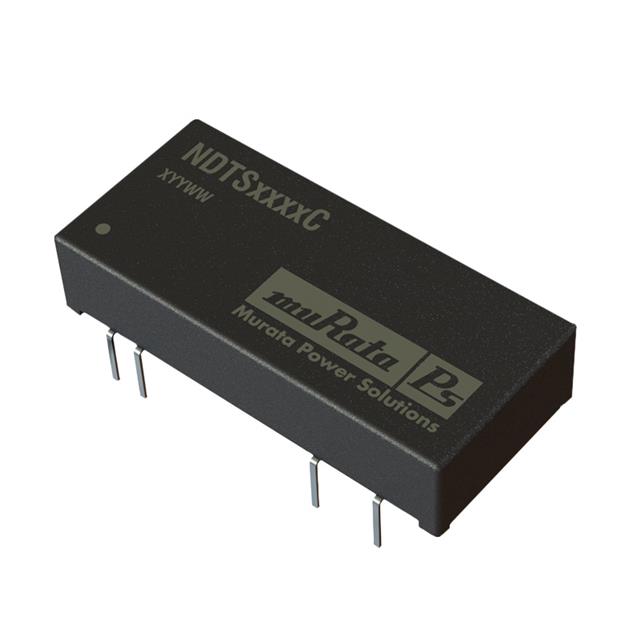

NDTS2403C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 15V 3W

Part	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Efficiency	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)
Murata Power Solutions Inc. NDTS2415C	Through Hole	1	36 V	Isolated Module	85 °C	-40 °C	15 V	84 %	ITE (Commercial)	18 V	1000 V	200 mA	24-DIP Module (600 mil, 8 Leads)	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3 W
Murata Power Solutions Inc. NDTS2405C	Through Hole	1	36 V	Isolated Module	85 °C	-40 °C	5 V	78 %	ITE (Commercial)	18 V	1000 V	600 mA	24-DIP Module (600 mil, 8 Leads)	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3 W
Murata Power Solutions Inc. NDTS2403C	Through Hole	1	36 V	Isolated Module	85 °C	-40 °C	3.3 V	71 %	ITE (Commercial)	18 V	1000 V	909 mA	24-DIP Module (600 mil, 8 Leads)	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.98

General part information

Isolated Module DC DC Converter 1 Output 3.3V 909mA 18V - 36V Input
