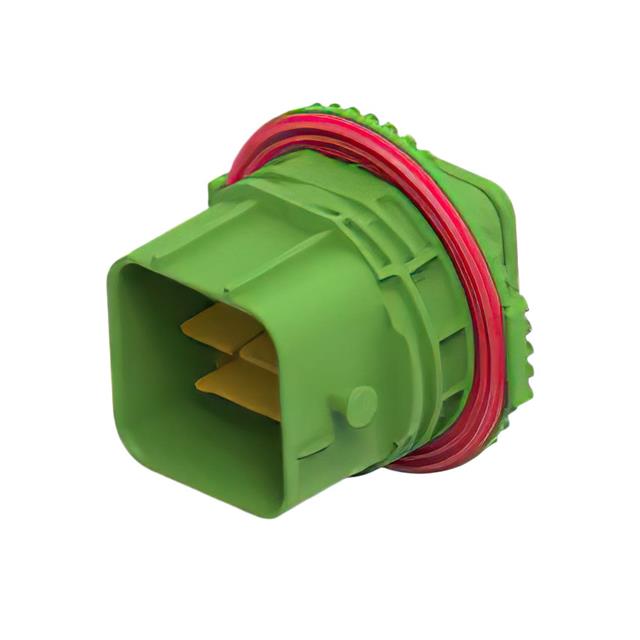

2-2366509-3
ActiveTE Connectivity AMP Connectors
48POS,HYBRID,PIN HSG ASSY,SLD,COD C
2-2366509-3
ActiveTE Connectivity AMP Connectors
48POS,HYBRID,PIN HSG ASSY,SLD,COD C
Description
General part information
DEUTSCH NTSEAL Series
48 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.5 mm [.138 in] Centerline, Sealable, Green, Wire & Cable, Power, DEUTSCH NTSEAL
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2366509-3 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Sealed, Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Number of Rows | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
