GPSIM15
ObsoleteTE Connectivity AMP Connectors
RF ANT 1.575GHZ MOD CAB CHAS MT
GPSIM15
ObsoleteTE Connectivity AMP Connectors
RF ANT 1.575GHZ MOD CAB CHAS MT
Description
General part information
GPSIM15

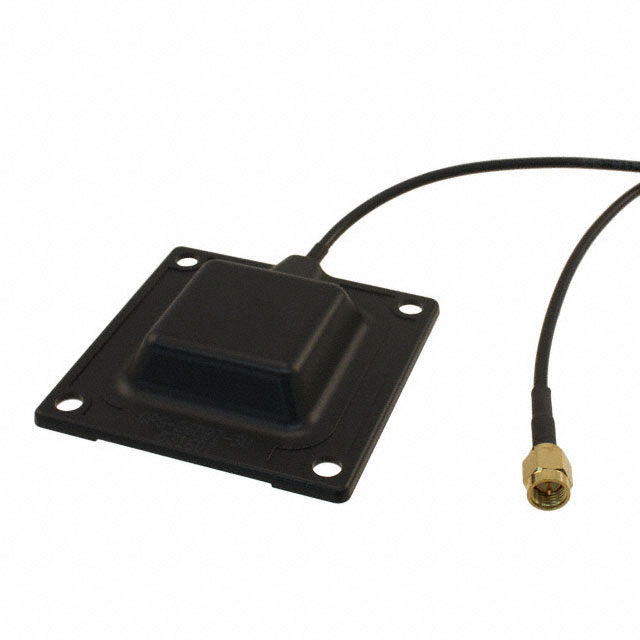

RF ANTENNA GPS Module SMA Male Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GPSIM15 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | 1.5m, Cable |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Gain | 2.5 dBi |
| Height (Max) | 0.25 in |
| Mounting Type | Chassis Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
