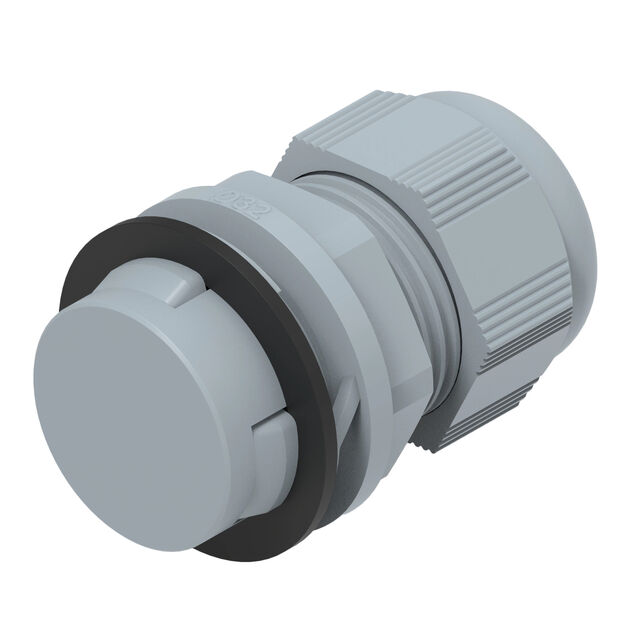

Specification	1SNG622026R0000

Color	Gray
Includes	Seal, Gasket
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Nylon 6, 6, Polyamide (PA66)
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.591 in
Outside Cable Diameter (Min)	0.433 in
Panel Hole Size	1.701 in
Type	Cable Gland - Snap In
