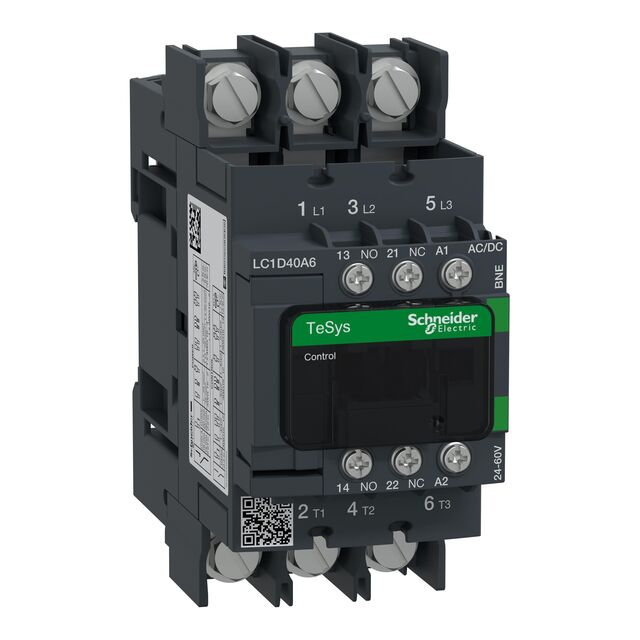

LC1D40A6BNE
ActiveSCHNEIDER ELECTRIC
TESYS CTR 3P40A AC3NO+NC24-60V A
LC1D40A6BNE
ActiveSCHNEIDER ELECTRIC
TESYS CTR 3P40A AC3NO+NC24-60V A
Description
General part information
LC1D40A6BNE
TESYS CTR 3P40A AC3NO+NC24-60V A
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D40A6BNE |
|---|---|
| Coil Voltage (Max) | 60 VAC/DC |
| Coil Voltage (Min) | 24 VAC |
| Coil Voltage (Type) | DC, AC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 40 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 65 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 80 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Box Lug |
