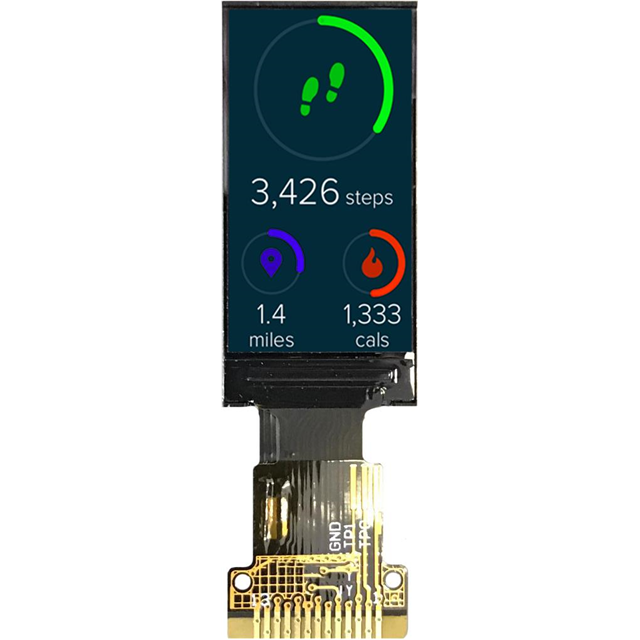

MDT0096A2IS-SPI
ActiveMidas Displays
TFT LCD, 4-WIRE, 0.96 ", 80 X 160 PIXELS, PORTRAIT, RGB, 2.8V
MDT0096A2IS-SPI
ActiveMidas Displays
TFT LCD, 4-WIRE, 0.96 ", 80 X 160 PIXELS, PORTRAIT, RGB, 2.8V
Description
General part information
MDT0096A2IS-SPI
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 0.96" (24.38mm) 80 x 160
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0096A2IS-SPI |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ST7735S |
| Diagonal Screen Size | 0.96 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 80 pixels |
| Dot Pixels (Vertical) | 160 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | SPI |
| Touchscreen | Non-Touch |
| Viewing Area Height | 21.7 mm |
| Viewing Area Width | 10.8 mm |
