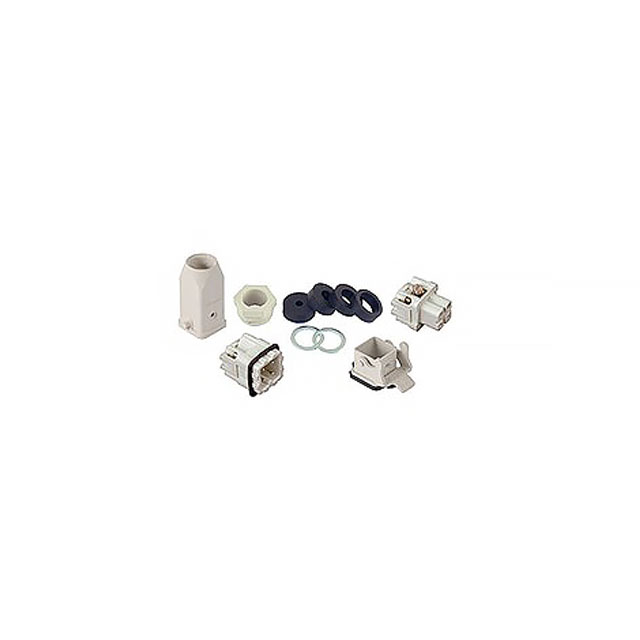

Specification	0936030004

Contents	Panel Connector Assembly, Cable
Includes	Base, Cable Gland, Inserts, Housing
Includes Total Count	5 pcs
Insert Quantity	2 pcs
Number of Positions	3
Position Types	Ground
Size	3A
Style	Bottom-Base, Top-Hood
Termination Style	Screw
Thread Size	PG11

093603 Series

Part	Termination Style	Style	Number of Positions	Position Types	Thread Size	Insert Quantity	Includes	Includes Total Count	Size	Contents
Molex 0936030030	Screw	Side-Base Top-Hood	4	Ground	M20	2 pcs	Base Cable Gland Housing Inserts	5 pcs	3A	Cable Panel Connector Assembly
Molex 0936030064	Screw	Side-Base Top-Hood	10	Ground	M20	2 pcs	Base Cable Gland Housing Inserts	5 pcs	10B	Cable Panel Connector Assembly
Molex 0936030054	Screw	Bottom-Base Side-Hood	10	Ground	PG16	2 pcs	Base Cable Gland Housing Inserts	5 pcs	10B	Cable Panel Connector Assembly
Molex 0936030018	Screw	Side-Base Top-Hood	4	Ground	PG11	2 pcs	Base Cable Gland Housing Inserts	5 pcs	3A	Cable Panel Connector Assembly
Molex 0936030079	Screw	Side-Base Top-Hood	16	Ground	M25	2 pcs	Base Cable Gland Housing Inserts	5 pcs	16B	Cable Panel Connector Assembly
Molex 0936030021	Screw	Side-Base Top-Hood	4	Ground	PG11	2 pcs	Base Cable Gland Housing Inserts	5 pcs	3A	Cable Panel Connector Assembly
Molex 0936030053	Screw	Bottom-Base Side-Hood	10	Ground	PG16	2 pcs	Base Cable Gland Housing Inserts	5 pcs	10B	Cable Panel Connector Assembly
Molex 0936030005	Screw	Side-Base Top-Hood	3	Ground	PG11	2 pcs	Base Cable Gland Housing Inserts	5 pcs	3A	Cable Panel Connector Assembly
Molex 0936030031	Screw	Bottom-Base Top-Hood	4	Ground	M20	2 pcs	Base Cable Gland Housing Inserts	5 pcs	3A	Cable Panel Connector Assembly
Molex 0936030037	Screw	Side Entry	6	Ground	PG16	2 pcs	Base Cable Gland Housing Inserts	5 pcs	6B	Cable Panel Connector Assembly
