1393364-2

1393364-2

Active

TE Connectivity AMP Connectors

V23540X7000Y 12=GET FEM TERM AU

Description Specifications Series Pricing CAD Documents

Description

General part information

Get .64 Connector System Series

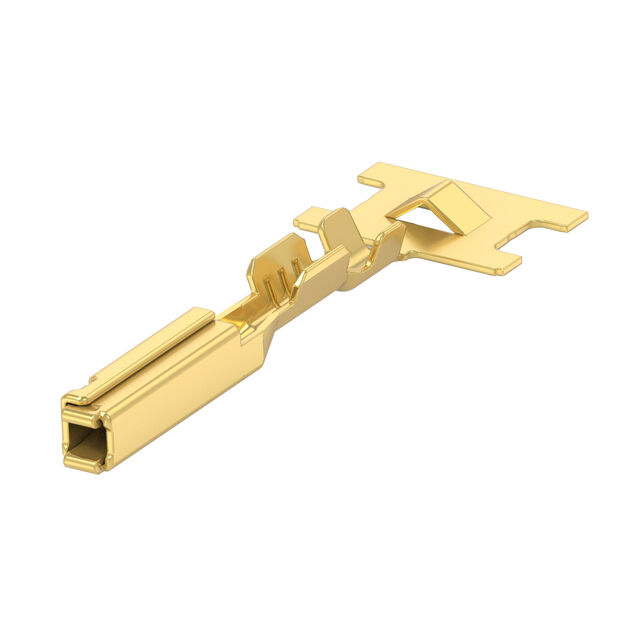

Receptacle Terminal, 24 – 22 AWG, .22 – .35 mm² Wire, .64 mm [.025 in] Tab Width, Gold (Au), Unsealed, Terminates To Wire, Get .64 Connector System

Technical Specifications

Parameters and characteristics for this part

Specification	1393364-2

Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1393364-2 | Datasheet

Product Change Notice EN

Allgemeine Crimpspezifikation / GENERAL CRIMP SPEC.

GET 0.64 Interconnection System

Global Electronic Technology (GET) 0.64-mm Pin and Socket Terminals For GET Connectors

Empfehlung min. Leitungslaenge bei Ultraschall-Schweissknoten / RECOMMENDATION MIN. WIRE LENGTH FOR ULTRASONIS WELD SPLICES

ENG_CD_1393364_D1.pdf

Get .64 Connector System Series
