XS1M12AB120
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 2 MM, SPST-NC, 12 TO 24 VDC, PRE-WIRED
XS1M12AB120
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 2 MM, SPST-NC, 12 TO 24 VDC, PRE-WIRED
Description
General part information
XS1M12AB120

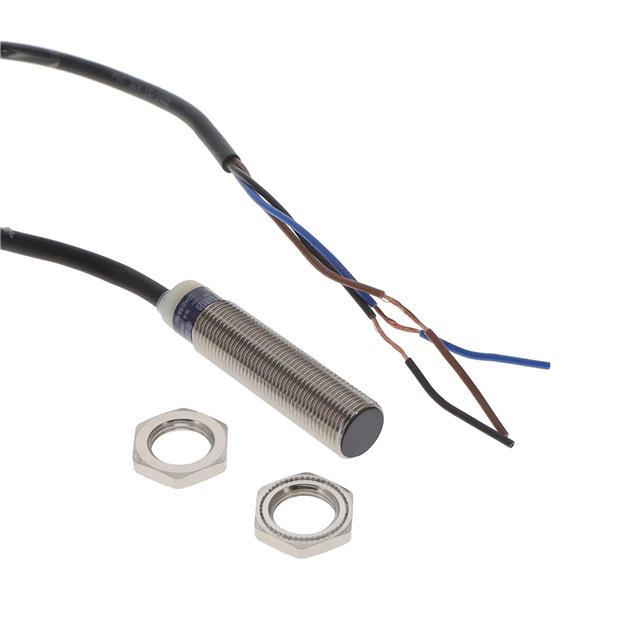

Inductive Proximity Sensor 0.079" (2mm) IP67 Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS1M12AB120 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Metal |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Current |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
