CHM1DNXU
ActiveEaton - Electronics Division

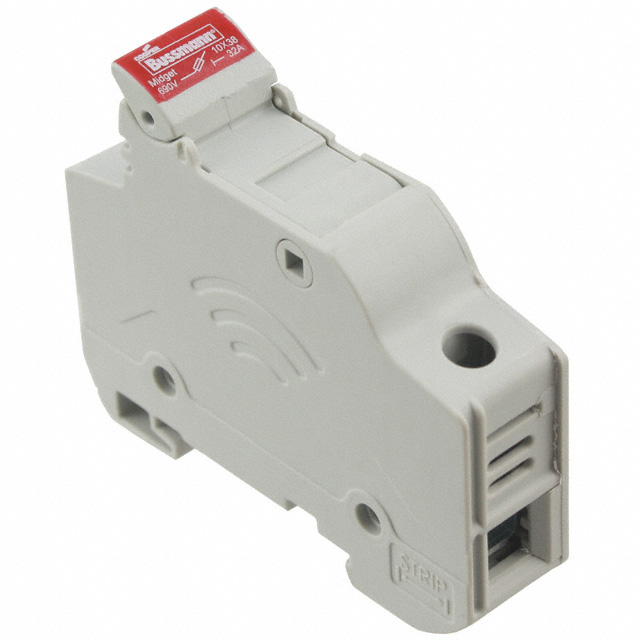

MODULAR FUSE HOLDER, MODULAR, 32A (IEC),
CHM1DNXU
ActiveEaton - Electronics Division
MODULAR FUSE HOLDER, MODULAR, 32A (IEC),
Description
General part information
CHM1DNXU
Fuse Holder 30 A 600V 1 Circuit Cartridge DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | CHM1DNXU |
|---|---|
| Current Rating | 30 A |
| For Use With/Related Products | 5AG, 13/32" x 1-1/2" (Midget) |
| Fuse Diameter | 0.394 in |
| Fuse Length | 1.496 in |
| Fuse Type | Cartridge |
| Fuseholder Type | Holder |
| Mounting Type | DIN Rail |
| Number of Circuits | 1 |
| Termination Style | Screw Terminal |
| Voltage | 600 V |
