284953-1

Active

TE Connectivity AMP Connectors

12 POS. FEMALE CONNECTOR FOR S

Find alt

Alpha

284953-1

Active

TE Connectivity AMP Connectors

12 POS. FEMALE CONNECTOR FOR S

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AMP MCP 1.5K Series

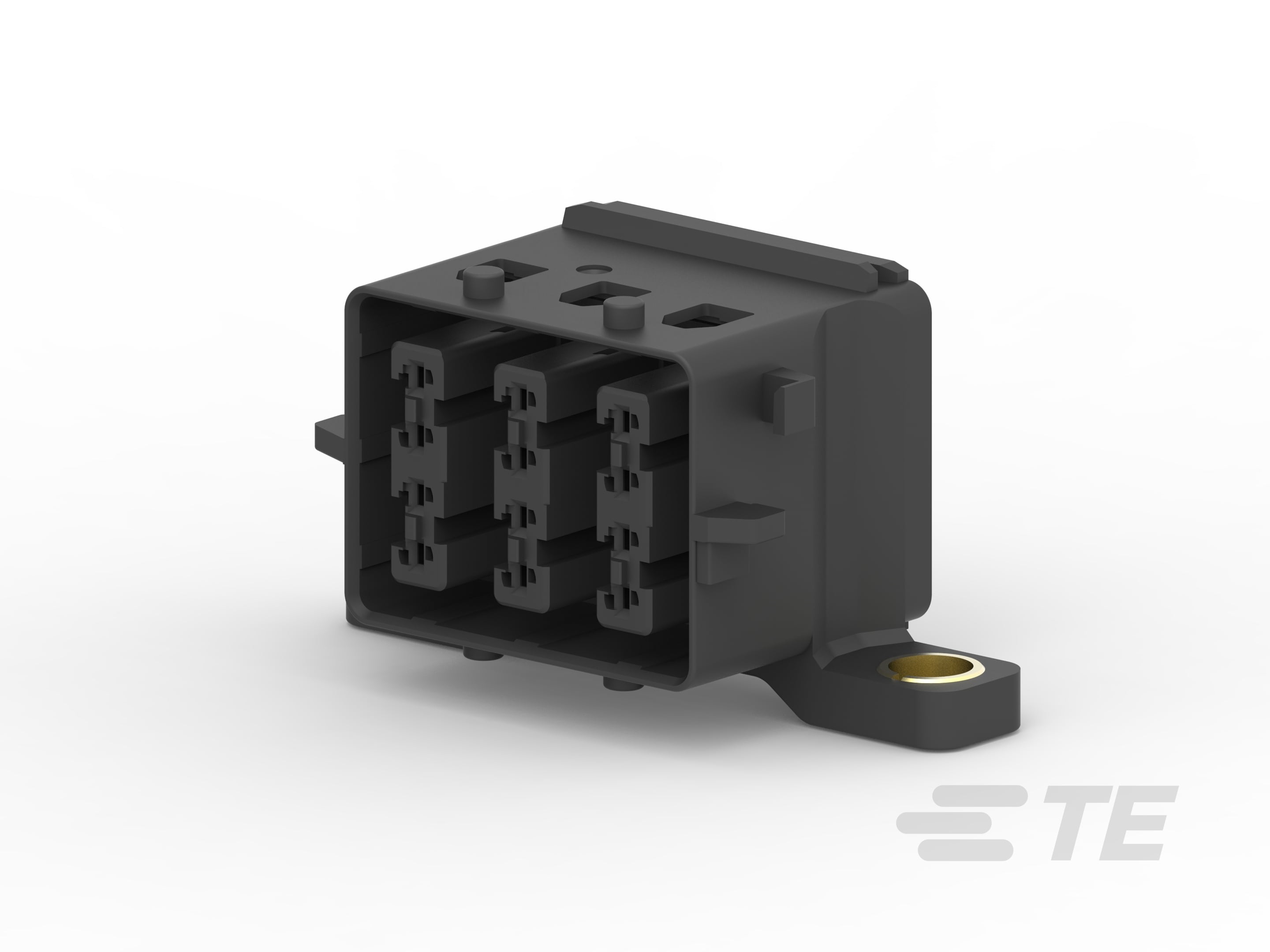

12 Position Housing, Housing for Female Terminals, Wire-to-Panel, 5 mm [.197 in] Centerline, Sealable, Black, Wire & Cable, Power, Panel Mount, Hybrid

Technical Specifications

Parameters and characteristics for this part

Specification	284953-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Number of Positions	12
Number of Rows	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.197 in

AMP MCP 1.5K Series

Part	Connector Type	Number of Rows	Color	Mounting Type	Contact Termination	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Number of Positions	Contact Type	Fastening Type	Contact Finish	Pin or Socket	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Row Spacing	Type	Contact Finish Thickness
TE Connectivity AMP Connectors 1564980-2
TE Connectivity AMP Connectors 1823679-1	Housing for Female Insert	1	Black	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	130 °C	-40 °C	0.157 in	3	Female Socket	Latch Holder
TE Connectivity AMP Connectors 1241380-1					Crimp								Tin	Socket	18 AWG	20.5 AWG
TE Connectivity AMP Connectors 2390416-1	Receptacle	5	Black	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-40 °C	0.157 in	36	Male Pin	Locking Ramp					0.157 in
TE Connectivity AMP Connectors 1418408-1					Crimp								Tin	Tab	17 AWG	20.5 AWG		Stamped
TE Connectivity AMP Connectors 1564324-1					Crimp								Tin	Socket	22 AWG	24 AWG		Stamped
TE Connectivity AMP Connectors 1534162-1					Crimp								Tin	Socket	17 AWG	20.5 AWG		Stamped
TE Connectivity AMP Connectors 284848-1	Receptacle	2	Black	Free Hanging (In-Line)	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	125 °C	-25 °C	0.197 in	12	Female Socket						0.236 in
TE Connectivity AMP Connectors 1241374-2					Crimp								Gold	Socket	17 AWG	20.5 AWG			31.5 µin
TE Connectivity AMP Connectors 1718490-2	Receptacle	1	Natural	Free Hanging (In-Line)	Crimp	Glass Filled Polybutylene Terephthalate (PBT)	120 °C	-40 °C	0.157 in	9	Female Socket	Locking Ramp
