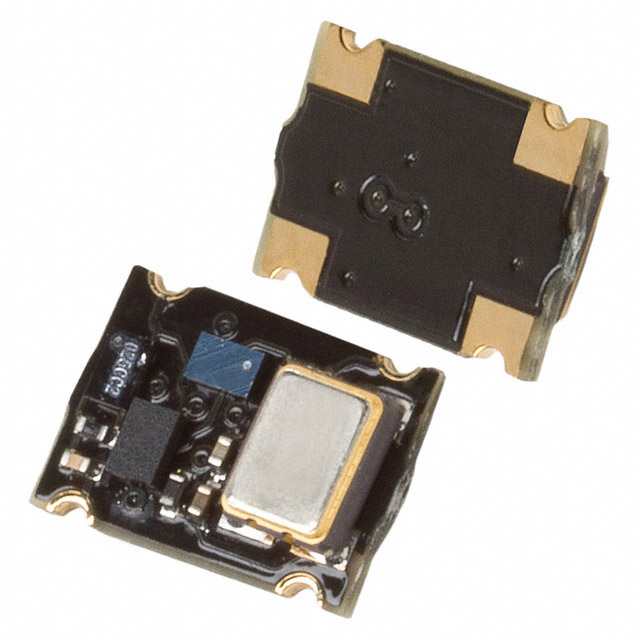

ABFT-20.000MHZ-T2
ObsoleteAbracon LLC
IC FREQ XLATOR JITTER ATTEN
ABFT-20.000MHZ-T2
ObsoleteAbracon LLC
IC FREQ XLATOR JITTER ATTEN
Description
General part information
ABFT-20.000MHZ-T2
IC 20MHz 1 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ABFT-20.000MHZ-T2 |
|---|---|
| Frequency - Max | 20 MHz |
| Input | Clock |
| Input Ratio | 1 |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Output Ratio | 1 |
| Package / Case | 4-SMD, No Lead |
| Package Length | 7 mm |
| Package Name | SMD, 4-SMD |
| Package Width | 5 mm |
| Voltage - Supply (Maximum) | 3.465 V |
| Voltage - Supply (Minimum) | 3.135 V |
