B78108S1394J000
LTBEPCOS - TDK Electronics
FIXED IND 390UH 180MA 7 OHM TH
B78108S1394J000
LTBEPCOS - TDK Electronics
FIXED IND 390UH 180MA 7 OHM TH
Description
General part information
B78108S1394J000

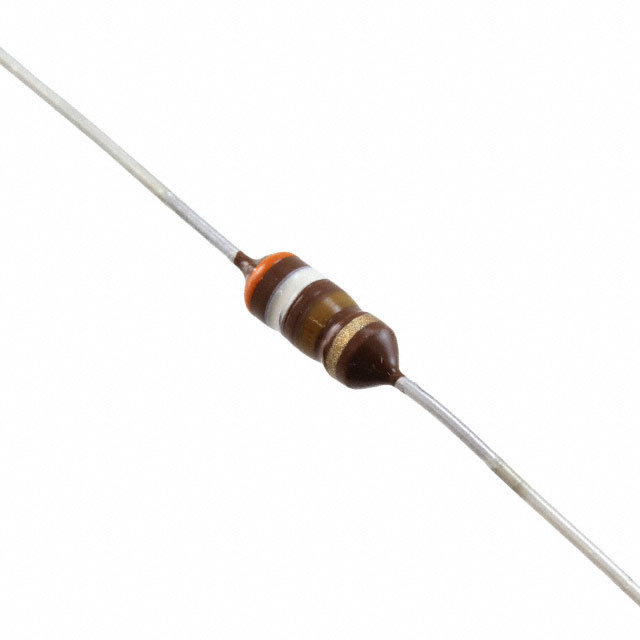

390 µH Unshielded Drum Core, Wirewound Inductor 180 mA 7Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78108S1394J000 |
|---|---|
| Current Rating | 0.18 A |
| DC Resistance (DCR) (Max) | 7 Ohm |
| Frequency - Self Resonant | 2.4 MHz |
| Inductance | 390 µH |
| Inductance Frequency - Test | 796 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Q | 70 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.362 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
