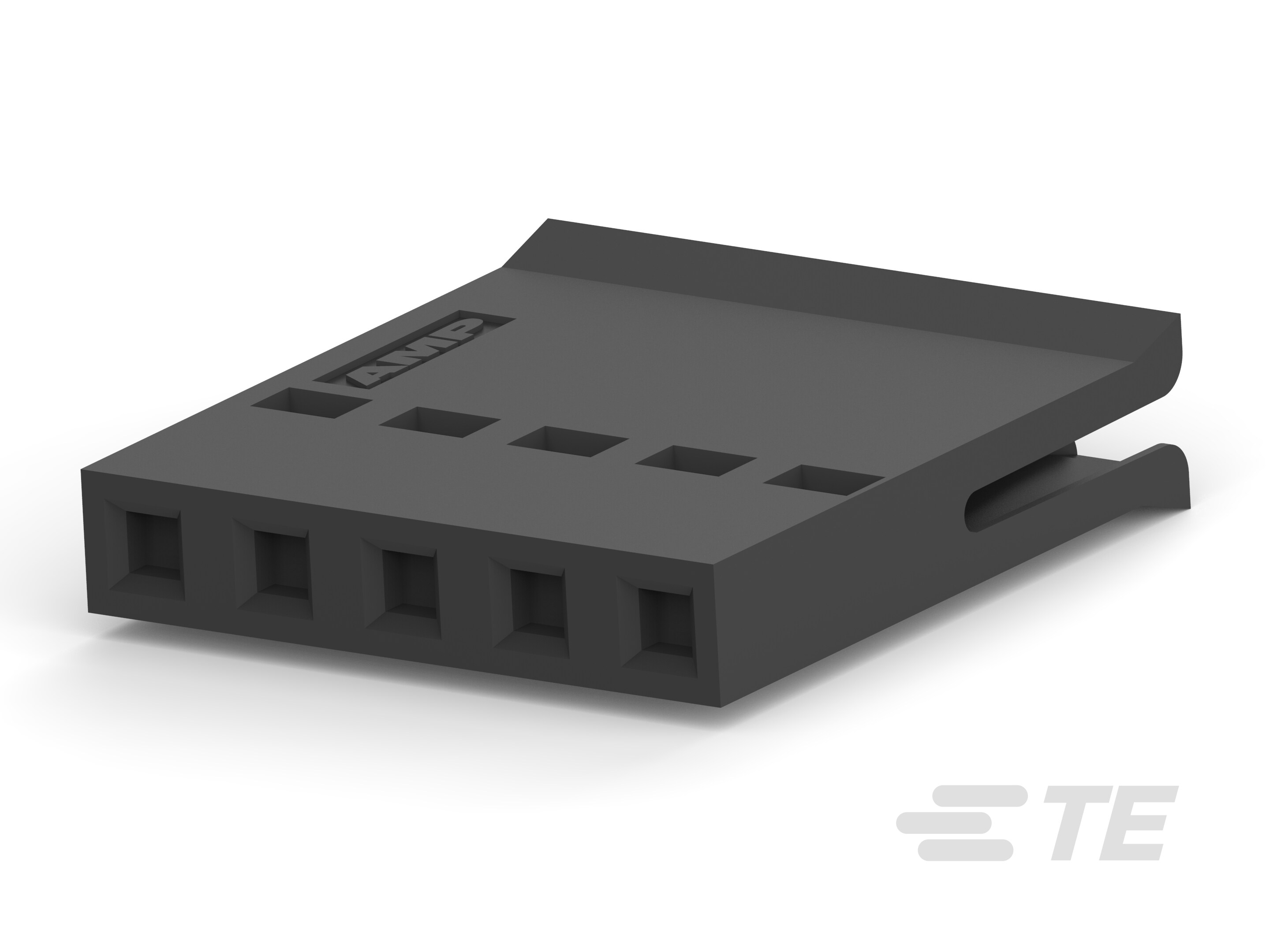

005 HOUSING FFC RCPT 100CL SR-487378-4

487378-4

Active
TE Connectivity AMP Connectors

FFC / FPC BOARD CONNECTOR, 2.54 MM, 5 CONTACTS, RECEPTACLE, CRIMP

Find alt
005 HOUSING FFC RCPT 100CL SR-487378-4

487378-4

Active
TE Connectivity AMP Connectors

FFC / FPC BOARD CONNECTOR, 2.54 MM, 5 CONTACTS, RECEPTACLE, CRIMP

Find alt

Description

General part information

487378-4

Housing, Wire-to-Board, 5 Position, 2.54 mm [.1 in] Centerline, 1 Row, Socket, Package, Normal, Straight, Black, FFC Connectors

Technical Specifications

Parameters and characteristics for this part

Specification487378-4
Connector TypeHousing for Female Contacts
FFC, FCB Thickness (Max)0.13 mm
FFC, FCB Thickness (Min)0.05 mm
Flat Flex TypeFFC
Housing MaterialThermoplastic
Material Flammability RatingUL94 V-0
Number of Positions5
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-65 °C
Pitch0.1 in
Voltage Rating300 VAC/DC
