1-176497-1
ActiveTE Connectivity AMP Connectors
CONN HOUSING RCP 1 POS CRIMP RA CABLE MOUNT NATURAL BAG
1-176497-1
ActiveTE Connectivity AMP Connectors
CONN HOUSING RCP 1 POS CRIMP RA CABLE MOUNT NATURAL BAG
Description
General part information
Positive Lock 250 Series

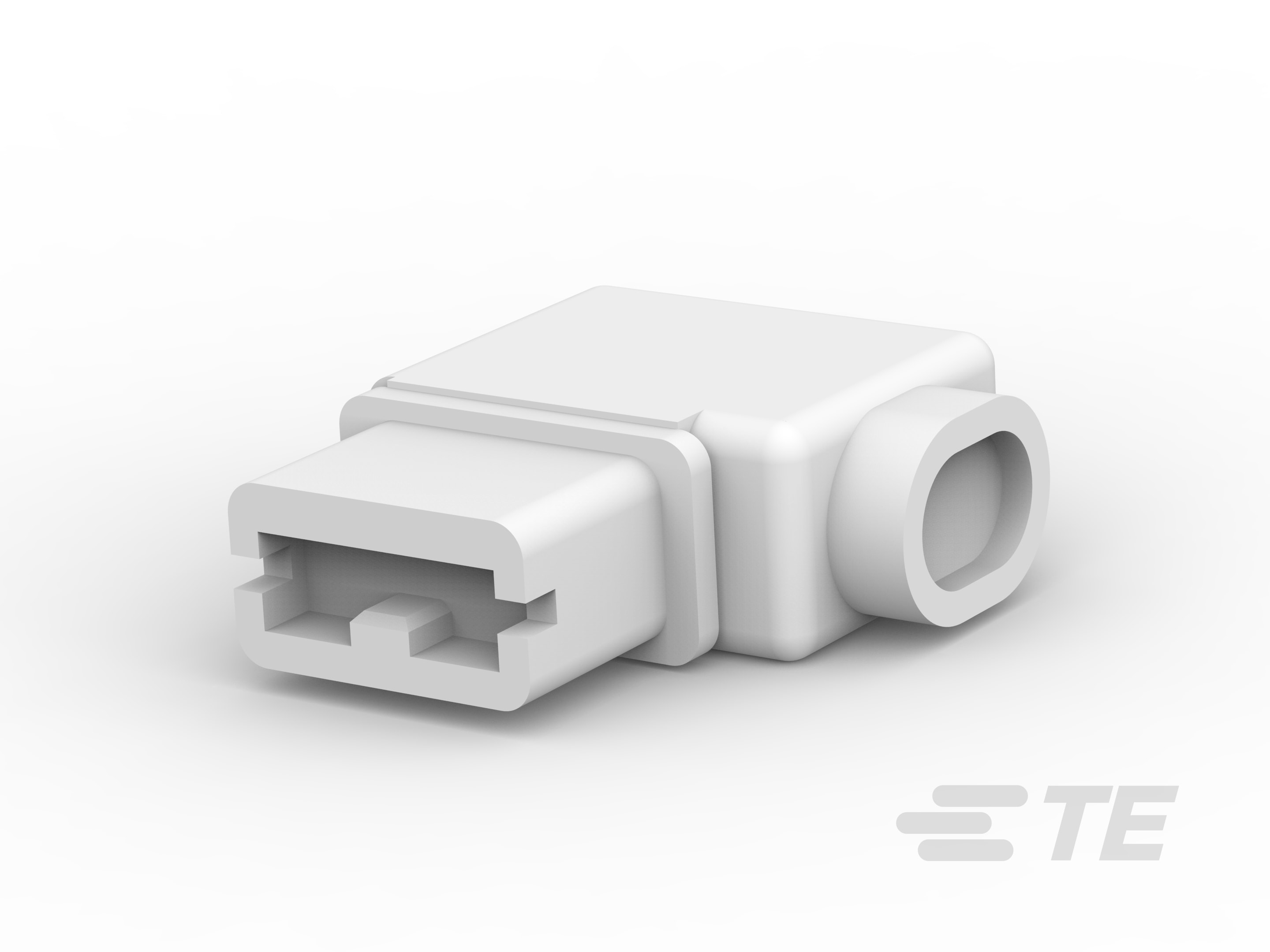

Receptacle, Receptacle, 1 Position, Flag, UL 94V-0, Natural, Nylon, Cable Mount (Free-Hanging), Positive Lock 250, Crimp Terminal Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-176497-1 |
|---|---|
| Color | Natural |
| For Use With/Related Products | 0.250" (6.35mm) Quick Connects, Flag |
| Gender | Female, Receptacle |
| Material | Nylon, Polyamide (PA) |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Style | Housing |
| Terminal Size | 0.25 in |
| Terminal Type | Disconnect, Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Product Change Notice EN
RECEPTACLES - Attachment Plug Type and Plugs,S-use Positive Lock connectors
AMPIP
AMP Positive Lock and Positive Lock EX Connectors
Positive Lock
Crimping 250 Series Flag Type Positive Lock EX Contact
250 SERIES FLAG POSITIVE LOCK EX CONTACT
Datasheet
AMPIP COMPONENT INSULATING COVERS
