2487877-8
ActiveTE Connectivity AMP Connectors

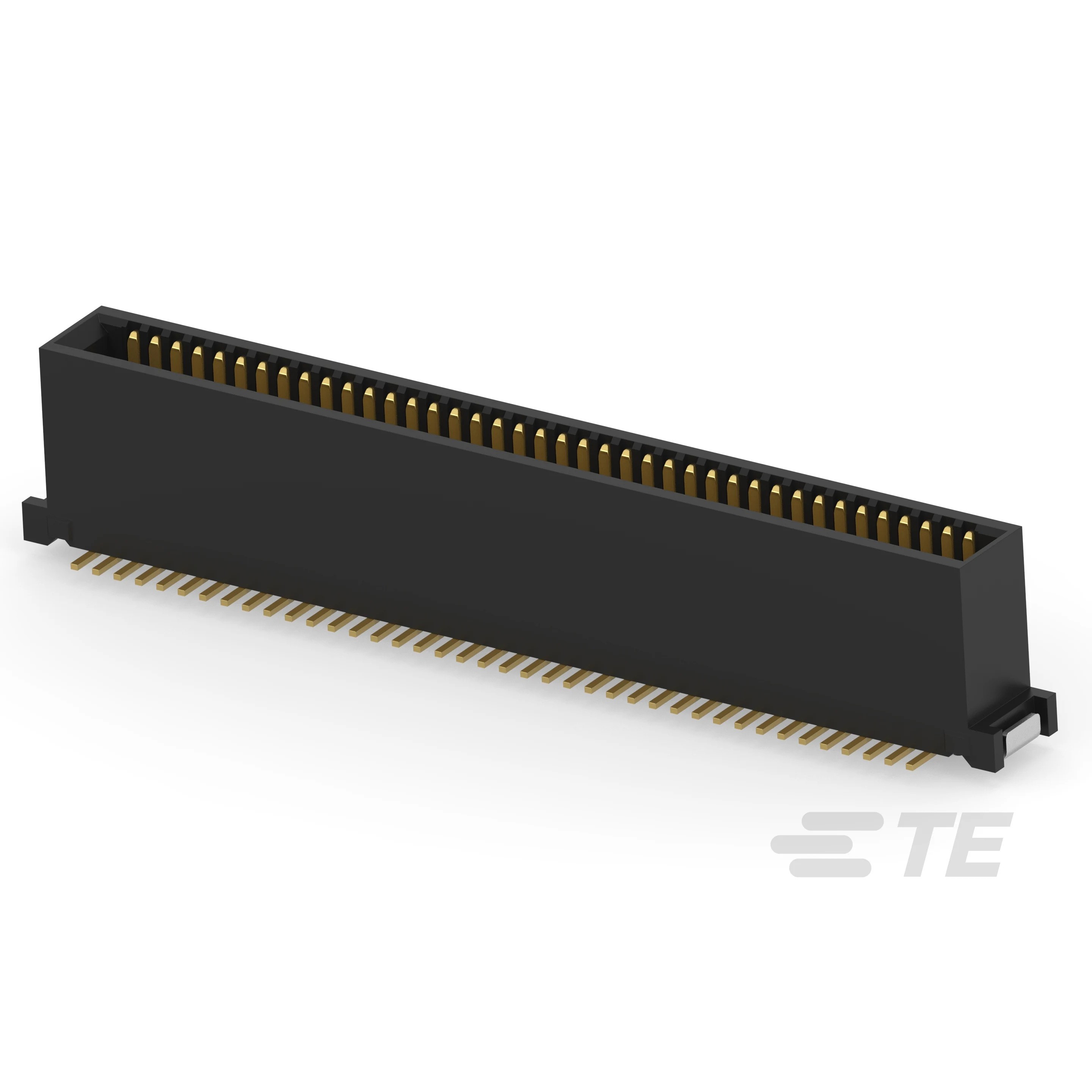

FLOATING BTB PLUG -V 6.8MM H, 80POS
2487877-8
ActiveTE Connectivity AMP Connectors
FLOATING BTB PLUG -V 6.8MM H, 80POS
Description
General part information
2487877-8
PCB Mount Header, Vertical, Board-to-Board, 80 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Black, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 2487877-8 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 µin |
| Features | Solder Retention, Pick and Place, Board Guide |
| Height Above Board | 0.268 in |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch | 0.031 in |
