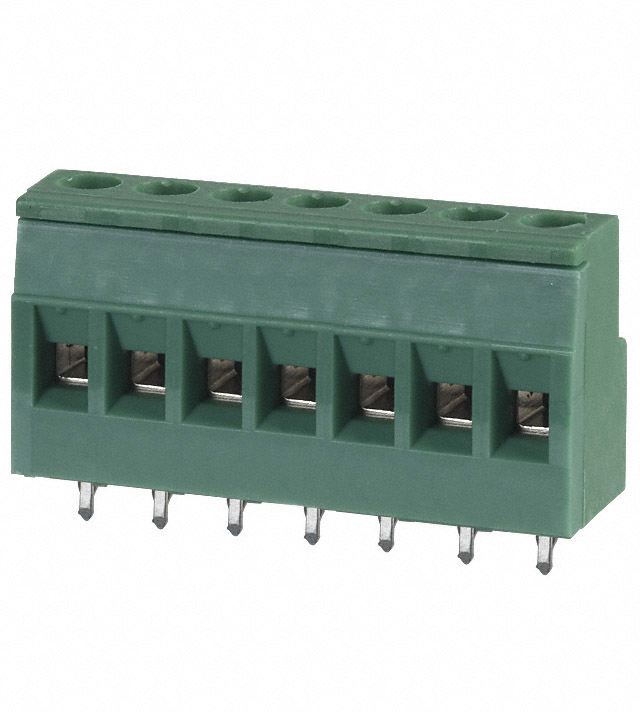

1730667
ObsoletePhoenix Contact
TERM BLK 7P SIDE ENT 5.08MM PCB
1730667
ObsoletePhoenix Contact
TERM BLK 7P SIDE ENT 5.08MM PCB
Description
General part information
1730667
7 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1730667 |
|---|---|
| Color | Green |
| Current | 10 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 7 |
| Screw Thread | M3 |
| Torque - Screw (Maximum) | 0.6 Nm |
| Torque - Screw (Minimum) | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
