MLG0402P7N5HT000
ActiveTDK Corporation
FIXED IND 7.5NH 140MA 1.7OHM SMD
MLG0402P7N5HT000
ActiveTDK Corporation
FIXED IND 7.5NH 140MA 1.7OHM SMD
Description
General part information
MLG0402P7N5HT000

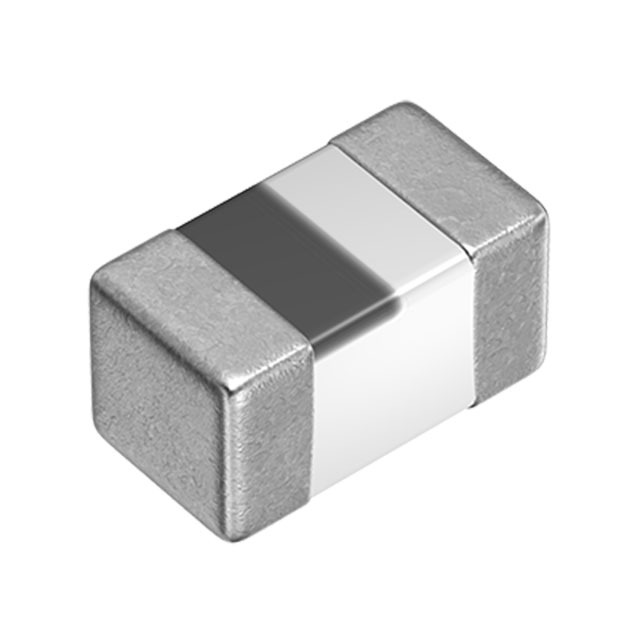

7.5 nH Unshielded Multilayer Inductor 140 mA 1.7Ohm Max 01005 (0402 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MLG0402P7N5HT000 |
|---|---|
| Current Rating | 140 mA |
| DC Resistance (DCR) (Max) | 1.7 Ohm |
| Frequency - Self Resonant | 4.2 GHz |
| Height - Seated (Max) | 0.009 in |
| Inductance | 7.5 nH |
| Inductance Frequency - Test | 500 MHz |
| Material - Core | Non-Magnetic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 01005 (0402 Metric) |
| Package Name | 01005 (0402 Metric) |
| Q | 8 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.016 in |
| Size / Dimension Width | 0.008 in |
| Tolerance | 3 % |
| Type | Multilayer |
