1-1337553-0

Active

TE Connectivity AMP Connectors

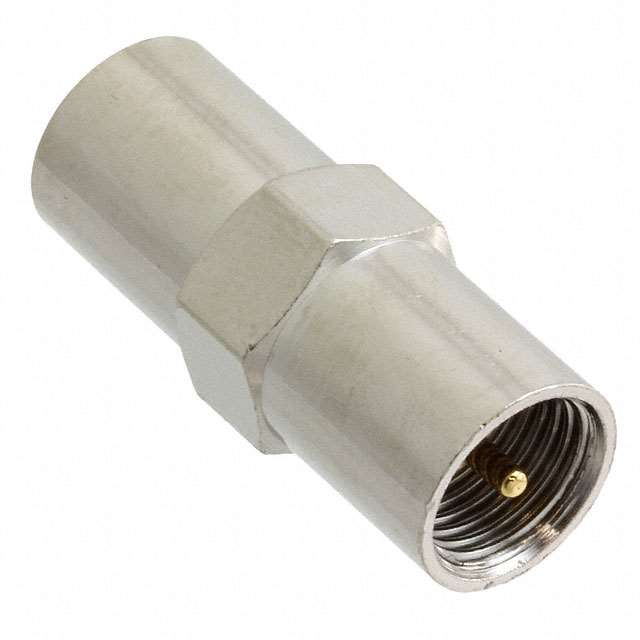

CONN ADAPT PLUG-PLUG FME 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT PLUG-PLUG FME 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337553-0

Adapter Series	FME to FME
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	FME Plug, Male Pin
Convert To (Adapter End)	Male Pin, FME Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

CONN ADAPT PLUG-PLUG FME 50 OHM

Part	Body Finish	Body Material	Impedance	Dielectric Material	Center Gender	Frequency - Max [Max]	Convert From (Adapter End)	Center Contact Material	Mounting Type	Adapter Type	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Style	Insertion Loss	Mating Cycles	Center Contact Plating	Convert To (Adapter End)	Conversion Type
TE Connectivity AMP Connectors 1-1337553-0	Nickel	Brass	50 Ohms	Polytetrafluoroethylene (PTFE)	Male to Male	2 GHz	FME Plug, Male Pin	Brass	Free Hanging (In-Line)	Plug to Plug	FME to FME	-55 °C	125 °C	Straight	0.5 dB	500	Gold	FME Plug, Male Pin	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector FME Plug, Male Pin To FME Plug, Male Pin 50 Ohms
