2STF1525

Active

STMicroelectronics

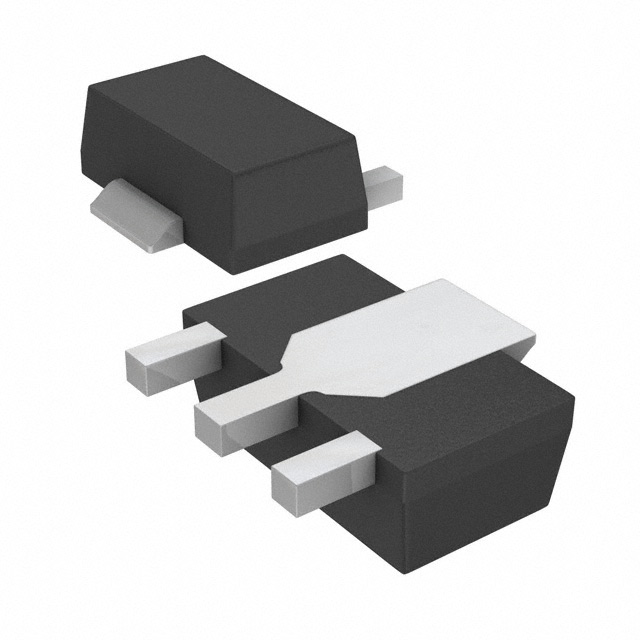

TRANS NPN 25V 5A SOT89

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS NPN 25V 5A SOT89

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2STF1525	2STF15 Series

Current - Collector (Ic) (Max)	5 A	5 A
Current - Collector Cutoff (Max) [Max]	100 nA	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	150	135 - 150
Frequency - Transition	120 MHz	120 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	150 °C	150 °C
Package / Case	TO-243AA	TO-243AA
Power - Max [Max]	1.4 W	1.4 W
Supplier Device Package	-	SOT-89-3
Transistor Type	NPN	NPN
Vce Saturation (Max) @ Ib, Ic	500 mV	450 - 500 mV
Voltage - Collector Emitter Breakdown (Max)	25 V	25 V
Voltage - Collector Emitter Breakdown (Max)	-	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TRANS NPN 50V 5A SOT89-3

Part	Operating Temperature	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Current - Collector (Ic) (Max)	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max)
STMicroelectronics 2STF1550	150 °C	1.4 W	135	450 mV	NPN	SOT-89-3	100 nA	Surface Mount	50 V	TO-243AA	5 A
STMicroelectronics 2STF1525	150 °C	1.4 W	150	500 mV	NPN		100 nA	Surface Mount		TO-243AA	5 A	120 MHz	25 V

General part information

Bipolar (BJT) Transistor NPN 25 V 5 A 120MHz 1.4 W Surface Mount SOT-89
