FMCA2380-12
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TNCPLUG 12
FMCA2380-12
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TNCPLUG 12
Description
General part information
FMCA2380-12

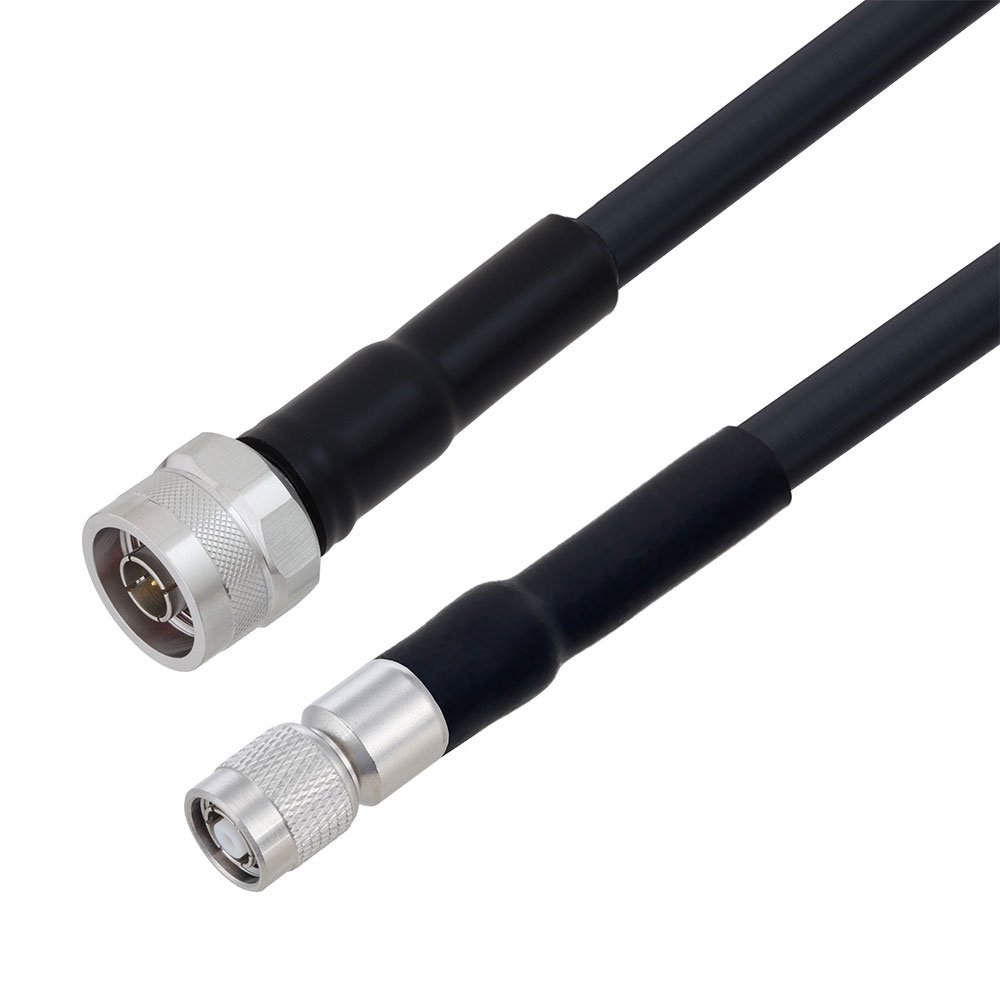

Cable Assembly Coaxial RP-TNC to N-Type LMR 400 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2380-12 |
|---|---|
| 1st Connector | RP-TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-TNC, N-Type |
