Description
General part information

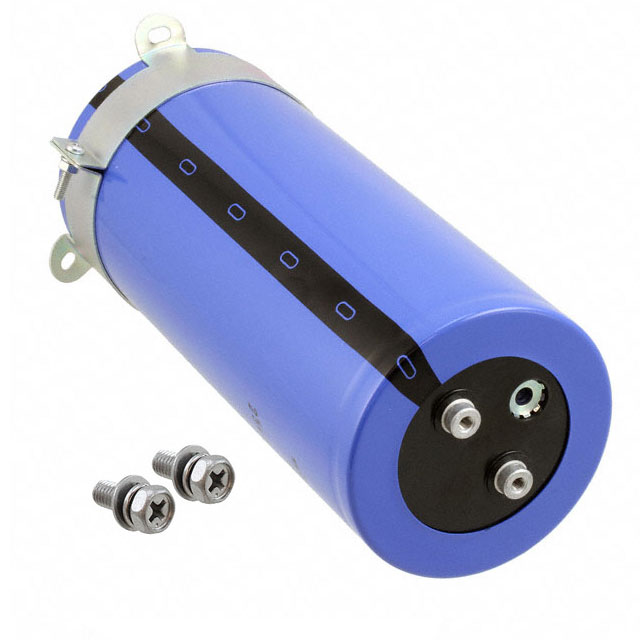

LNR1A155MSE
1.5 F 10 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNR1A155MSE |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.5 F |
| Height - Seated (Max) | 8.78 in |
| Lead Spacing | 1.252 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 33.9 A |
| Size / Dimension Diameter | 3.543 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
