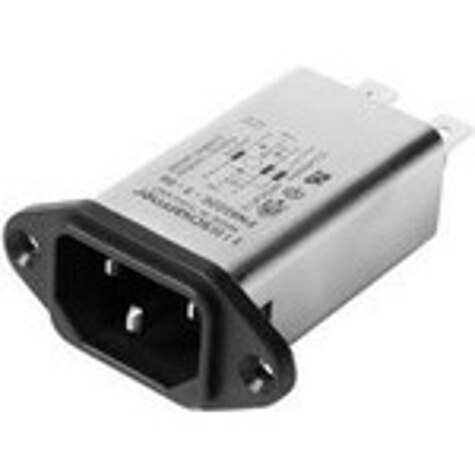

FN9222EU-15-06HI
ActiveTE Connectivity AMP Connectors
AC POWER ENTRY MODULES 15A 250VAC HOT INLET WIDE MOUNTING FLANGE
FN9222EU-15-06HI
ActiveTE Connectivity AMP Connectors
AC POWER ENTRY MODULES 15A 250VAC HOT INLET WIDE MOUNTING FLANGE
Description
General part information
Schaffner FN9222 Series
AC Power Entry Modules IEC INLET 1A FILTER PERFORMANCE
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9222EU-15-06HI |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | CSA, ENEC, UL |
| Connector Style | IEC 320-C16 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 15 A |
| Features | Earth Line Choke, Front or Rear Side Mount |
| Filter Application | Commercial |
| Filter Subtype | EMI, RFI |
| Filter Type | Filtered |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Panel Cutout Length | 28.5 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 21.5 mm |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
