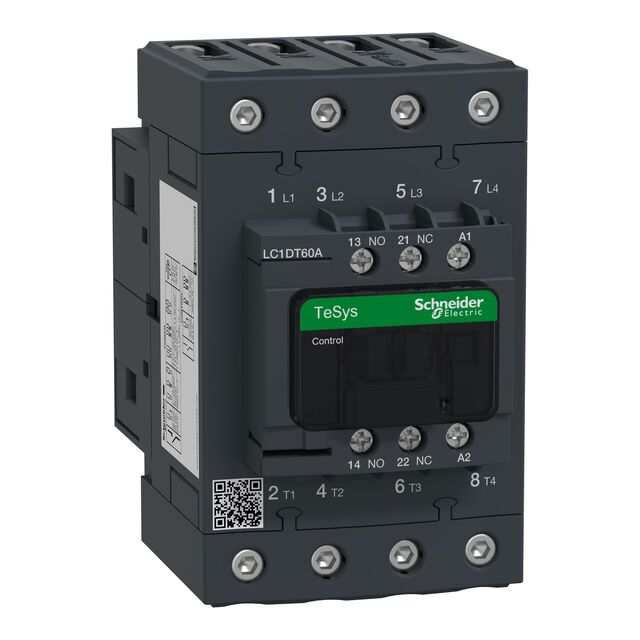

LC1DT60AD7
ActiveSCHNEIDER ELECTRIC
TESYS 4P EVLK CTRACTOR 60A AC1 4
LC1DT60AD7
ActiveSCHNEIDER ELECTRIC
TESYS 4P EVLK CTRACTOR 60A AC1 4
Description
General part information
LC1DT60AD7
TESYS 4P EVLK CTRACTOR 60A AC1 4
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT60AD7 |
|---|---|
| Coil Voltage | 42 V |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 60 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 35.7 VAC |
| Must Release Voltage | 12.6 VAC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
