1744041-1
ActiveTE Connectivity AMP Connectors

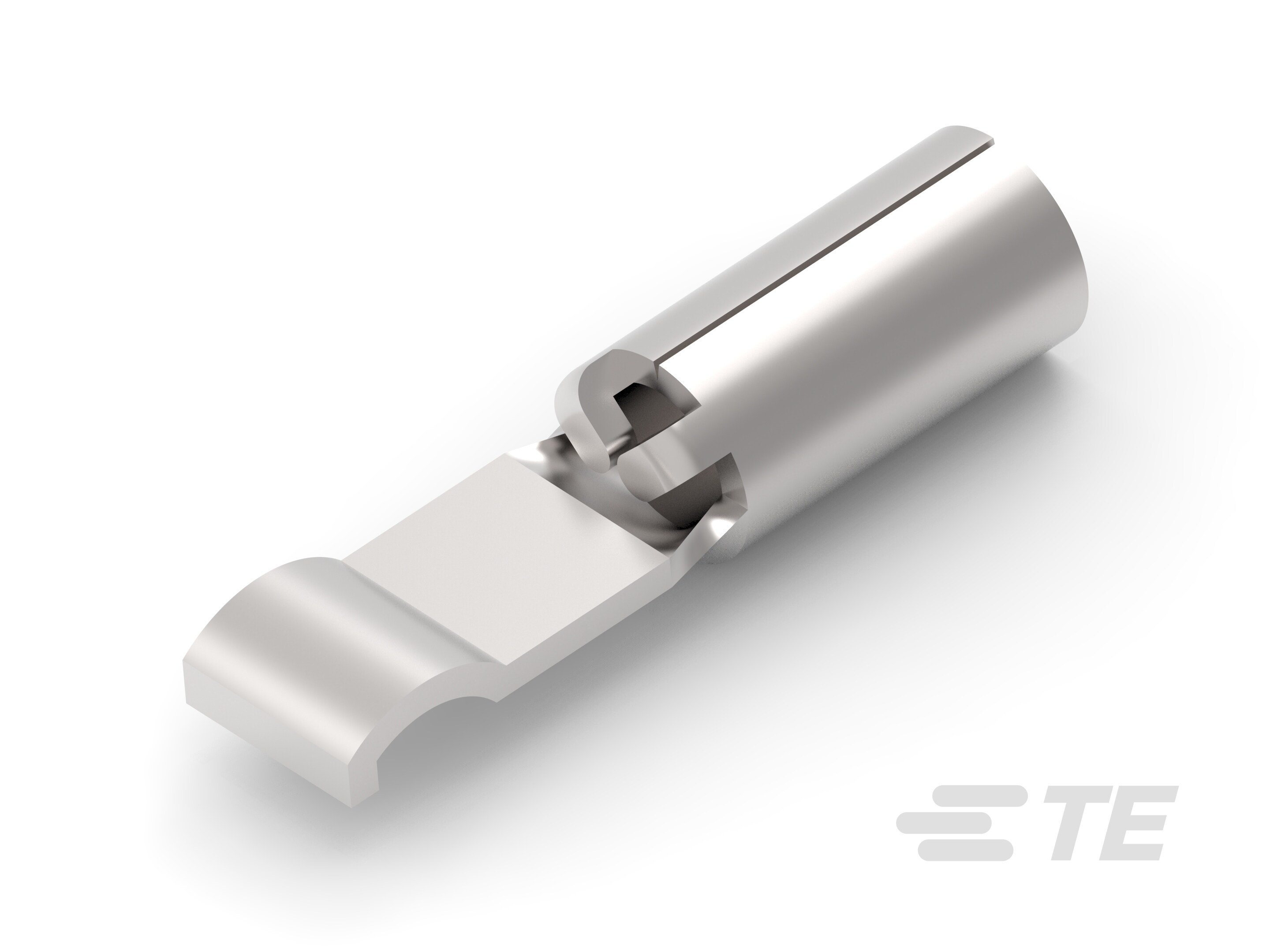

TERM BLADE NON-GEND 12-16AWG SIL
1744041-1
ActiveTE Connectivity AMP Connectors
TERM BLADE NON-GEND 12-16AWG SIL
Description
General part information
1744041-1
Receptacle Contact, Silver (Ag), 600 VAC, 600 VDC, 16 – 12 AWG, 1.229 – 3.372 mm² Wire, 2425 – 6655 CMA, Crimp, Copper Alloy, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1744041-1 |
|---|---|
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Series 45 Power Connector
C_1744041_O.pdf
IMPACT 100 Ohm Interconnect Systems
Product Verification of AMP Power Series 15, 30 and 45 Connectors
Series 15 Power Connector
LOOSE PIECE CONTACT, 12 - 16 AWG, AMP POWER SERIES 30
Stamped and Formed Contact Evaluation of AMP Series 15, 30 and 45 Power Contacts
AMP Power Series 15, 30, 45 (Single Pole) Connector Assemblies
Series 30 Power Connector
POWER_CONNECTORS_CATALOG_SEC02_CABLE_MOUNTED
Datasheet
1744041-1 | Datasheet
