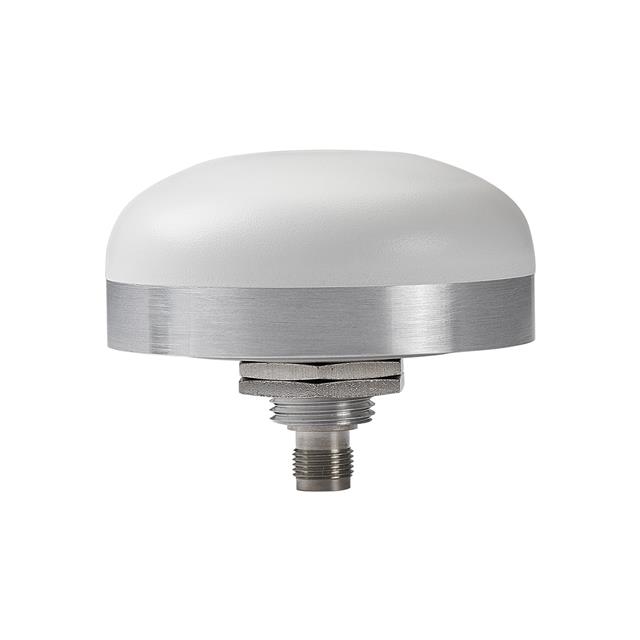

GNSS-L125-TNC
ActiveMcGill Microwave Systems
RF ANT GNSS 28DB PRECIS TNCF LP
GNSS-L125-TNC
ActiveMcGill Microwave Systems
RF ANT GNSS 28DB PRECIS TNCF LP
Description
General part information
GNSS-L125-TNC
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Dome TNC Female Bracket Mount, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | GNSS-L125-TNC |
|---|---|
| Antenna Type | Dome |
| Applications | GLONASS, GNSS, Galileo, BEIDOU, GPS |
| Features | LNA, Filter |
| Frequency (Band) | 1.5575 GHz |
| Frequency (Center) | 1.22 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 1.3 GHz |
| Frequency Range (Band 1) Minimum | 1.16 GHz |
| Frequency Range (Band 2) Maximum | 1.615 GHz |
| Frequency Range (Band 2) Minimum | 1.52 GHz |
| Gain | 28 dBi |
| Height (Max) | 1.46 in |
| Ingress Protection | IP67 |
| Mounting Type | Through Hole, Bracket Mount |
| Number of Bands | 2 |
| RF Family/Standard | PNT |
| Termination | TNC Female |
| VSWR | 2 |
