AB1548B-2
ObsoletePUI Audio, Inc.

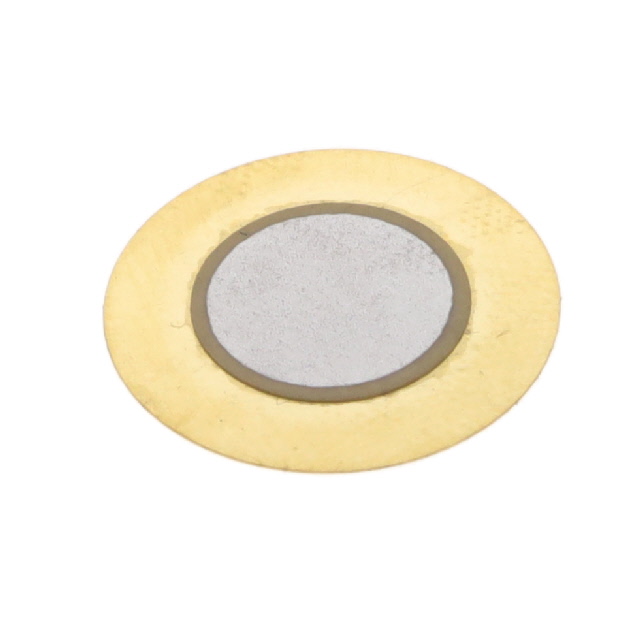

BUZZER ELEMENT 4.8KHZ 15MM
AB1548B-2
ObsoletePUI Audio, Inc.
BUZZER ELEMENT 4.8KHZ 15MM
Description
General part information
AB1548B-2
4.8 kHz Buzzer Element 30V p-p 0.591" Dia (15.00mm) 1 kOhms
Technical Specifications
Parameters and characteristics for this part
| Specification | AB1548B-2 |
|---|---|
| Capacitance | 11000 pF |
| Frequency | 4.8 kHz |
| Impedance | 1 kOhms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 0.591 in |
| Termination | None |
| Voltage - Input (Max) | 30 V p-p |
