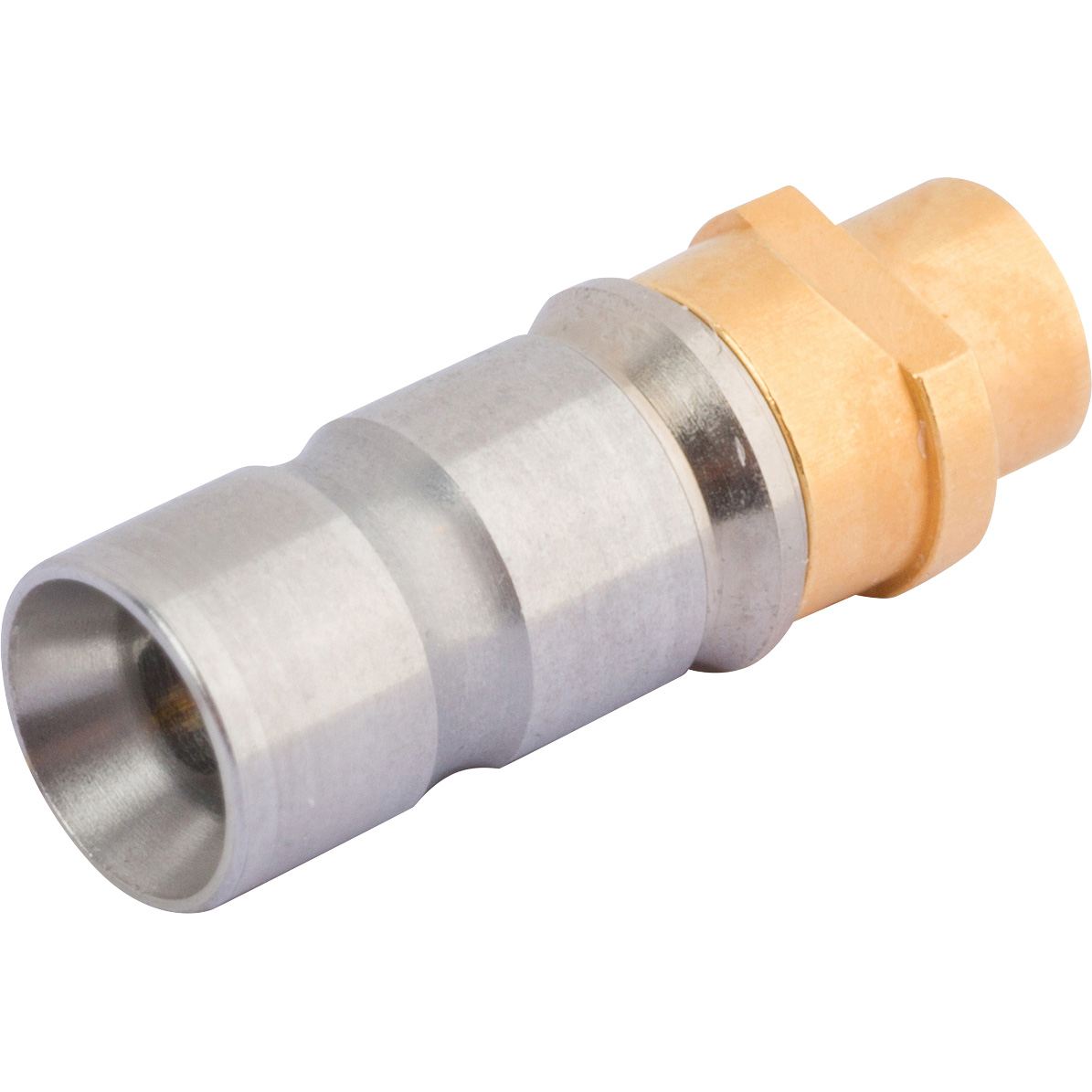

7511-60002
ActiveMcGill Microwave Systems
SMPM MALE VITA 67.3 PLUG-IN CONT
7511-60002
ActiveMcGill Microwave Systems
SMPM MALE VITA 67.3 PLUG-IN CONT
Description
General part information
7511-60002
SMPM Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 7511-60002 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | Belden 1672A |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max | 18 GHz |
| Housing Color | Gold, Silver |
| Impedance | 75 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
