XVSV9MWN
ActiveSCHNEIDER ELECTRIC

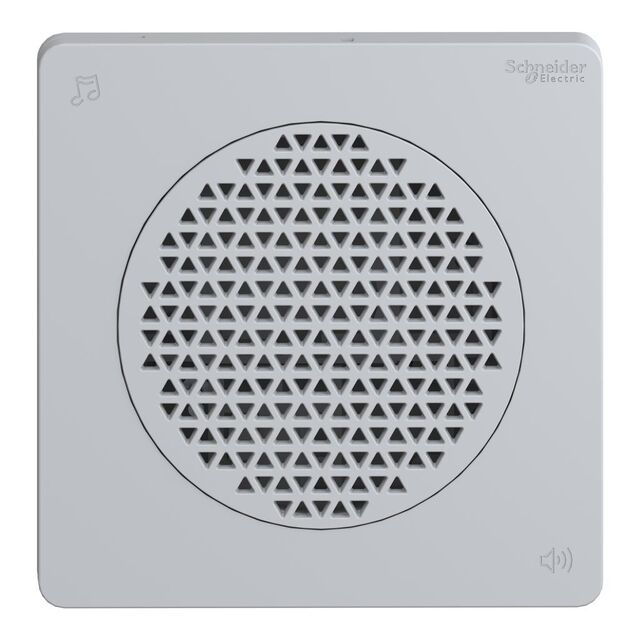

EDITABLE ALARM, ADJUSTABLE, 97 DB, 230 VAC, 100 MA, IP20, IP65, HARMONY XVS SERIES
XVSV9MWN
ActiveSCHNEIDER ELECTRIC
EDITABLE ALARM, ADJUSTABLE, 97 DB, 230 VAC, 100 MA, IP20, IP65, HARMONY XVS SERIES
Description
General part information
XVSV9MWN
Buzzers 100mA DIN Rail Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | XVSV9MWN |
|---|---|
| Approval Agency | CE |
| Current - Supply | 100 mA |
| Height - Seated (Max) | 1.972 in |
| Ingress Protection | IP65, IP20 |
| Input Type | AC |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Port Location | User Defined |
| Size / Dimension Length | 4.134 in |
| Size / Dimension Width | 4.134 in |
| Termination | Wire Leads |
| Voltage Range (Max) | 264 V |
| Voltage Range (Min) | 90 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
