NSYS3D3420P
ActiveSCHNEIDER ELECTRIC

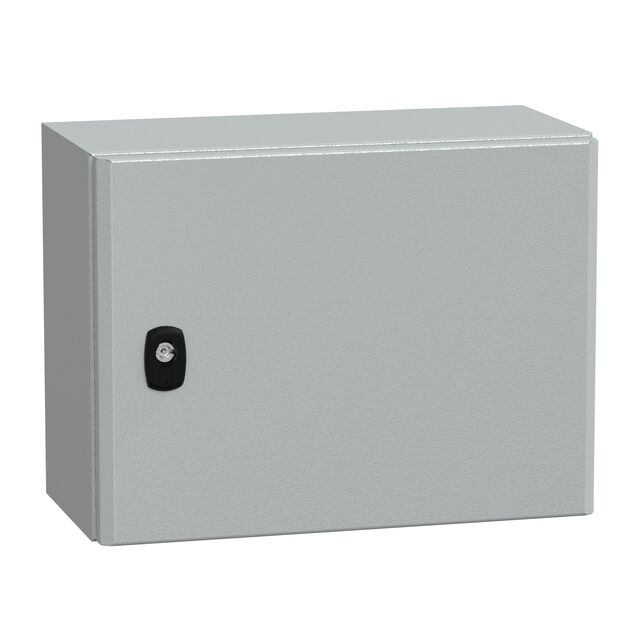

METAL ENCLOSURE, W/MOUNT PLATE, MULTIPURPOSE, STEEL, 300 MM, 400 MM, 200 MM, IP66
NSYS3D3420P
ActiveSCHNEIDER ELECTRIC
METAL ENCLOSURE, W/MOUNT PLATE, MULTIPURPOSE, STEEL, 300 MM, 400 MM, 200 MM, IP66
Description
General part information
NSYS3D3420P
Enclosure Metal, Steel Light Gray Hinged Door 11.811" L x 15.748" W (300.00mm x 400.00mm) X 7.874" (200.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYS3D3420P |
|---|---|
| Area (L x W) | 186 in² |
| Color | Light Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height | 7.874 in |
| Material | Metal, Steel |
| Ratings | IP66 |
| Size / Dimension Length | 11.811 in |
| Size / Dimension Width | 15.748 in |
