RP42525R0050GTTR
ObsoleteKYOCERA AVX
RES SMD 50 OHM 2% 20W 2525
RP42525R0050GTTR
ObsoleteKYOCERA AVX
RES SMD 50 OHM 2% 20W 2525
Description
General part information
RP42525R0050GTTR

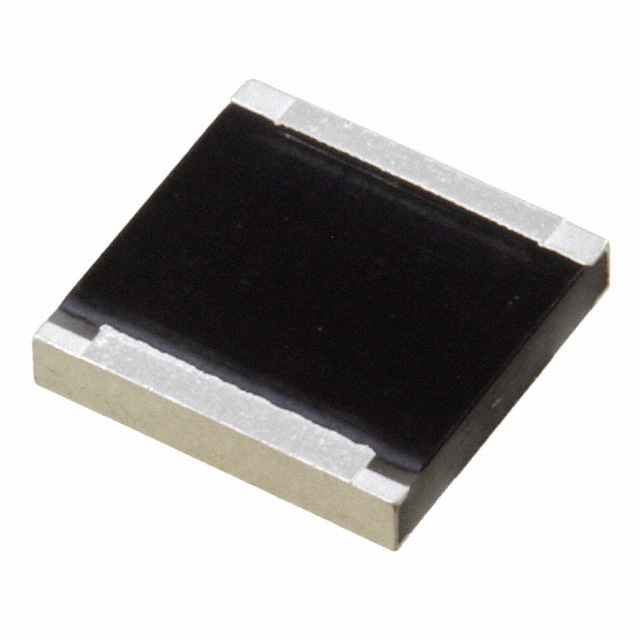

50 Ohms ±2% 20W Chip Resistor 2525 (6464 Metric) Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RP42525R0050GTTR |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) | 0.045 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2525 (6464 Metric) |
| Package Name | 2525 |
| Power (Watts) | 20 W |
| Resistance | 50 Ohms |
| Size / Dimension Length | 0.245 in |
| Size / Dimension Width | 0.245 in |
| Temperature Coefficient | 150 ppm/¯C |
| Tolerance | 2 % |
