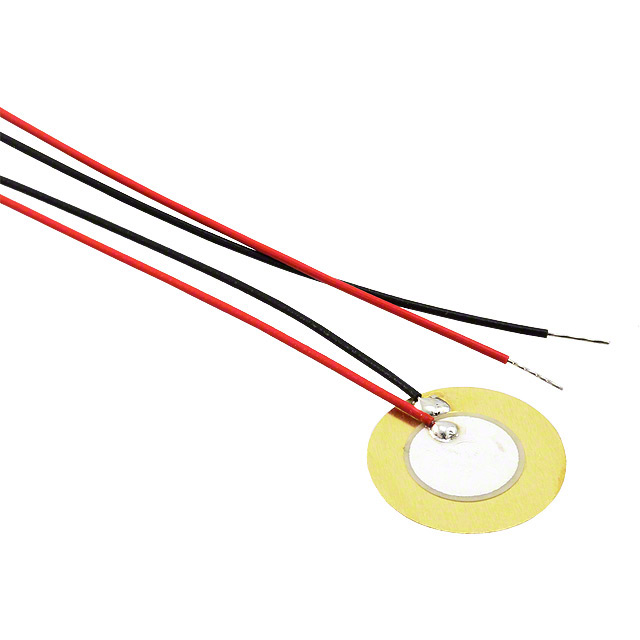

AB1541B-LW100-R
ActivePUI Audio, Inc.
PIEZO BENDER, 4.1 KHZ, 8000 PF, 1 KOHM, 0.6" DIA, 0.01" H
AB1541B-LW100-R
ActivePUI Audio, Inc.
PIEZO BENDER, 4.1 KHZ, 8000 PF, 1 KOHM, 0.6" DIA, 0.01" H
Description
General part information
AB1541B-LW100-R
4.1 kHz Standard Buzzer Element 30V p-p 0.591" Dia (15.00mm) 1 kOhms
Technical Specifications
Parameters and characteristics for this part
| Specification | AB1541B-LW100-R |
|---|---|
| Capacitance | 8000 pF |
| Frequency | 4.1 kHz |
| Impedance | 1 kOhms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 0.591 in |
| Termination | Wire Leads |
| Type | Standard |
| Voltage - Input (Max) | 30 V p-p |
