292140000
ActiveRose Enclosures
BOX PLASTIC YLW 6.3"L X 3.35"W
292140000
ActiveRose Enclosures
BOX PLASTIC YLW 6.3"L X 3.35"W
Description
General part information
292140000

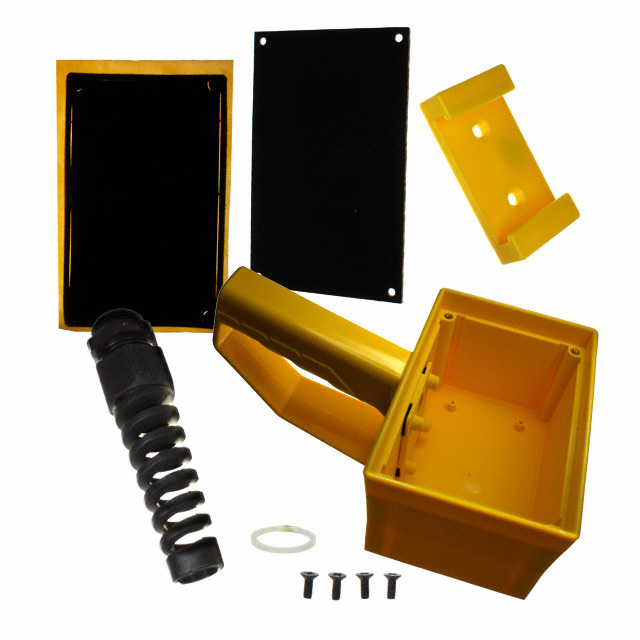

Box Plastic, Polyamide Yellow Hand Held, T-Shaped, Cover Included 6.299" L x 3.346" W (160.00mm x 85.00mm) X 8.898" (226.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 292140000 |
|---|---|
| Area (L x W) | 21.1 in² |
| Color | Yellow |
| Container Type | Box |
| Design | T-Shaped, Cover Included, Hand Held |
| Features | Removable Front Panel |
| Height | 8.898 in |
| Material | Polyamide, Plastic |
| Ratings | NEMA 12, IP65 |
| Size / Dimension Length | 6.299 in |
| Size / Dimension Width | 3.346 in |
| Thickness | 0.118 in |
| Weight | 0.96 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
