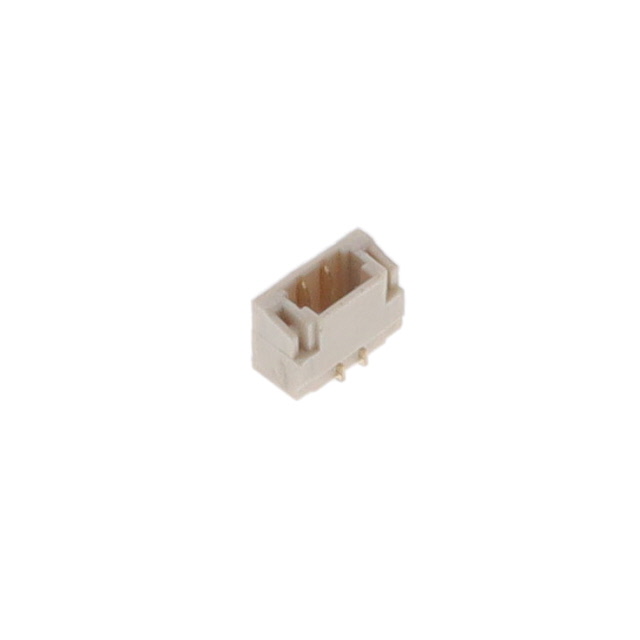

08SH-A-02-GS-SMT-PP-T/R
ActiveAdam Tech
CONN HEADER SMD 2POS 0.8MM
Deep-Dive with AI
Search across all available documentation for this part.
08SH-A-02-GS-SMT-PP-T/R
ActiveAdam Tech
CONN HEADER SMD 2POS 0.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 08SH-A-02-GS-SMT-PP-T/R | 08SH-A Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold, Tin |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Friction Lock | Friction Lock |
| Features | Pick and Place, Solder Retention | Pick and Place, Solder Retention |
| Insulation Color | Natural | Natural, Black |
| Insulation Height | - | 2.7 mm |
| Insulation Height | - | 0.106 in |
| Insulation Material | Thermoplastic | Thermoplastic, Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 2 | 2 - 10 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch - Mating | 0.031 in | 0.031 in |
| Pitch - Mating | 0.8 mm | 0.8 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 - 250 VAC |
08SH-A Series
CONN HEADER SMD 3POS 0.8MM
| Part | Number of Rows | Contact Material | Number of Positions Loaded | Contact Type | Shrouding | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Color | Voltage Rating | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Insulation Material | Features | Connector Type | Current Rating (Amps) | Material Flammability Rating | Termination | Fastening Type | Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Mounting Type | Insulation Height [z] | Insulation Height [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech 08SH-A-03-GS-SMT-PP-T/R | 1 | Phosphor Bronze | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Natural | 30 VAC | Gold | Flash | Flash | Thermoplastic | Pick and Place, Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Gold | Surface Mount | |||
Adam Tech 08SH-A-04-TS-SMT-PP-T/R | 1 | Copper Alloy | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Black | 250 VAC | Tin | Nylon, Polyamide (PA) | Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Surface Mount | 2.7 mm | 0.106 in | 4 | |||
Adam Tech 08SH-A-04-GS-SMT-PP-T/R | 1 | Phosphor Bronze | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Natural | 30 VAC | Gold | Flash | Flash | Thermoplastic | Pick and Place, Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Gold | Surface Mount | 4 | ||
Adam Tech 08SH-A-05-GS-SMT-PP-T/R | 1 | Phosphor Bronze | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Natural | 30 VAC | Gold | Flash | Flash | Thermoplastic | Pick and Place, Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Gold | Surface Mount | |||
Adam Tech 08SH-A-10-TS-SMT-PP-T/R | 1 | Copper Alloy | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Black | 250 VAC | Tin | Nylon, Polyamide (PA) | Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Surface Mount | 2.7 mm | 0.106 in | 10 | |||
Adam Tech 08SH-A-08-GS-SMT-PP-T/R | 1 | Phosphor Bronze | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Natural | 30 VAC | Gold | Flash | Flash | Thermoplastic | Pick and Place, Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Gold | Surface Mount | 8 | ||
Adam Tech 08SH-A-09-GS-SMT-PP-T/R | 1 | Phosphor Bronze | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Natural | 30 VAC | Gold | Flash | Flash | Thermoplastic | Pick and Place, Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Gold | Surface Mount | 9 | ||
Adam Tech 08SH-A-08-TS-SMT-PP-T/R | 1 | Copper Alloy | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Black | 250 VAC | Tin | Nylon, Polyamide (PA) | Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Surface Mount | 2.7 mm | 0.106 in | 8 | |||
Adam Tech 08SH-A-02-TS-SMT-PP-T/R | 1 | Copper Alloy | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Black | 250 VAC | Tin | Nylon, Polyamide (PA) | Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Surface Mount | 2.7 mm | 0.106 in | 2 | |||
Adam Tech 08SH-A-06-GS-SMT-PP-T/R | 1 | Phosphor Bronze | All | Male Pin | Shrouded - 4 Wall | Square | 0.031 in | 0.8 mm | Natural | 30 VAC | Gold | Flash | Flash | Thermoplastic | Pick and Place, Solder Retention | Header | Varies by Wire Gauge | UL94 V-0 | Solder | Friction Lock | Board to Cable/Wire | -25 °C | 85 °C | Gold | Surface Mount | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.64 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 2000 | $ 0.28 | ||
Description
General part information
08SH-A Series
Connector Header Surface Mount 2 position 0.031" (0.80mm)
