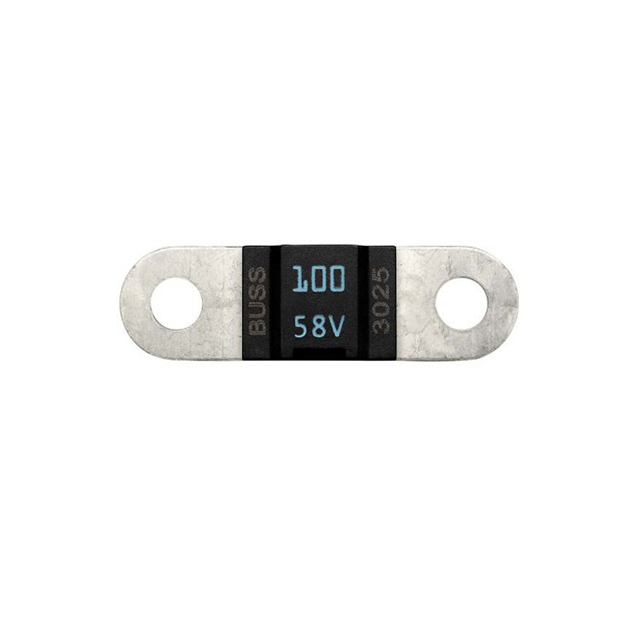

BAT1-100-R
ActiveEaton - Electronics Division
FUSE BOLT DOWN 100A 32V 58V
BAT1-100-R
ActiveEaton - Electronics Division
FUSE BOLT DOWN 100A 32V 58V
Description
General part information
BAT1-100-R
FUSE BOLT DOWN 100A 32V 58V
Technical Specifications
Parameters and characteristics for this part
| Specification | BAT1-100-R |
|---|---|
| Approval Agency | cURus |
| Breaking Capacity | 1 kA |
| Color | Blue |
| Current Rating | 100 A |
| Fuse Type | Automotive |
| Melting I²t | 43000 |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Metal Strip |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.323 in |
| Size / Dimension Length | 1.654 in |
| Size / Dimension Width | 0.472 in |
| Voltage Rating - DC | 58 VDC |
