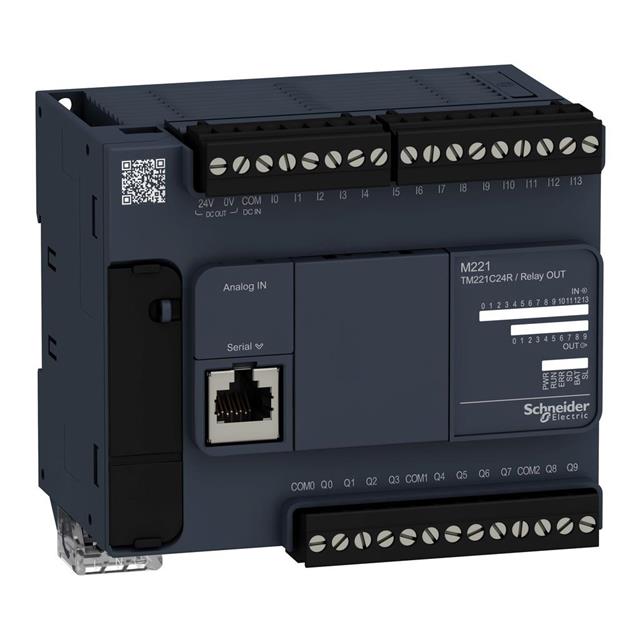

TM221C24R
ActivePLC, MODICON™ M221 SERIES, 14 SINK / SOURCE INPUTS, 10 RELAY OUTPUTS, 100 TO 240 VAC
TM221C24R
ActivePLC, MODICON™ M221 SERIES, 14 SINK / SOURCE INPUTS, 10 RELAY OUTPUTS, 100 TO 240 VAC
Description
General part information
TM221C24R
The TM221C24R is a 24 input/output Logic Controller offers best-in-class performance. It requires minimal installation and offers tremendous versatility in building the right solution for you and your customers. Connect a simple remote operator panel for instant maintenance and machine visualization. It is small yet powerful logic controller for small machines and your hardwired motion solution needs.
Technical Specifications
Parameters and characteristics for this part
| Specification | TM221C24R |
|---|---|
| Approval Agency | DNV, LR, CE, ABS, UKCA, EAC, cULus, RCM |
| Communications | RS-485, RJ45, RS-232, USB |
| Display Type | No Display |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Maximum Expandable Modules | 14 Modules |
| Mounting Type | DIN Rail |
| Number of Inputs | 14 |
| Number of Outputs | 10 |
| Operating Temperature (Max) | 35 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Relay |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Weight | 0.87 lb |
