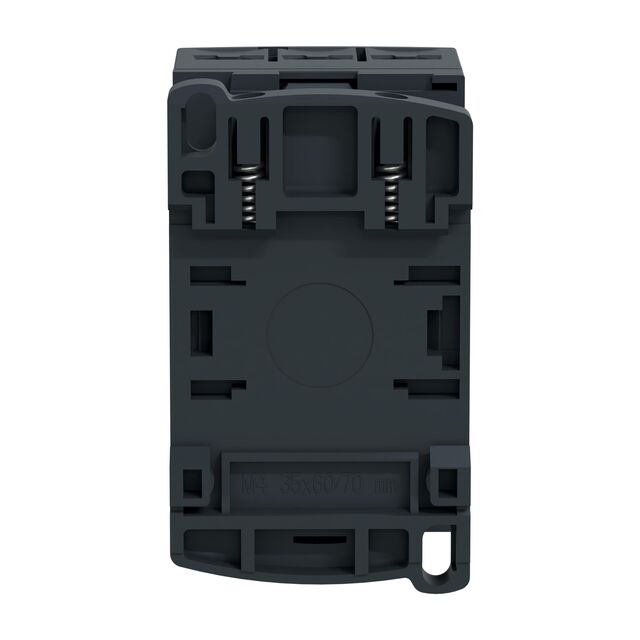

CAD32UD
ActiveSCHNEIDER ELECTRIC
CONTACTOR, DIN RAIL, PANEL, 3PST-NO, DPST-NC
CAD32UD
ActiveSCHNEIDER ELECTRIC
CONTACTOR, DIN RAIL, PANEL, 3PST-NO, DPST-NC
Description
General part information
CAD32UD
General Purpose Relay 5PST-3NO/2NC (3 Form A, 2 Form B) 250VDC Coil DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | CAD32UD |
|---|---|
| Approval Agency | CB, UL, EAC, CE, UKCA, CSA, CCC |
| Coil Type | Non Latching |
| Coil Voltage | 250 VDC |
| Contact Form | 3, Form, A, B, PST-3NO/2NC, 2 |
| Contact Rating (Current) | 10 A |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 175 VDC |
| Must Release Voltage | 25 VAC |
| Operate Time | 72 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 5 |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
