CC58T-25
ActivePasternack
CA TNC M/TNC M RG58C/U 25'
CC58T-25
ActivePasternack
CA TNC M/TNC M RG58C/U 25'
Description
General part information
CC58T-25

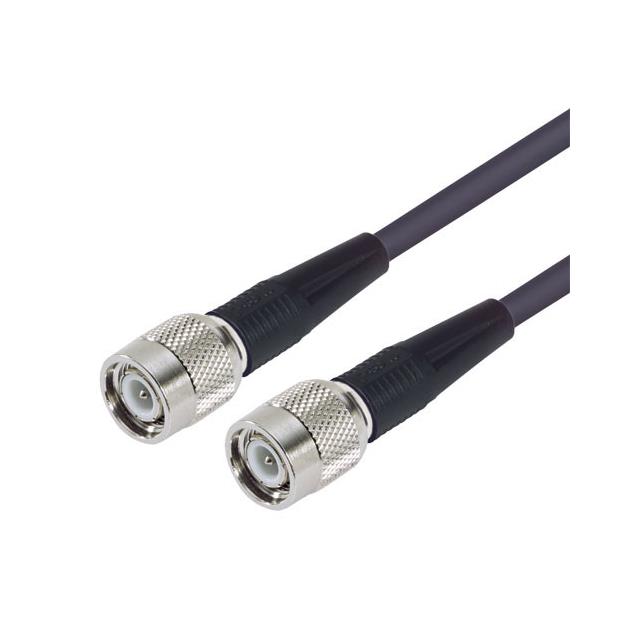

Cable Assembly Coaxial TNC to TNC RG-58C 300.0" (7.6m) 25.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | CC58T-25 |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58C |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 300 in |
| Overall Impedance | 50 Ohms |
| Style | TNC |
